GARR GARR 03027

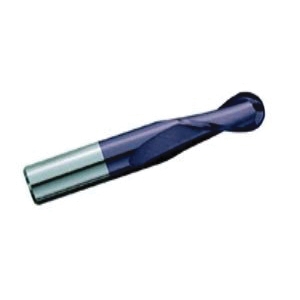

GARR 03027 180MA Ball End Center Cutting Single End Stub Length End Mill, 3/64 in Dia Cutter, 3/32 in Length of Cut, 2 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, TiALN Coated

Invoice description: Bem 3/64x3/32locx1/8x 1-1/2 2fl Tialn Stub

UNSPSC: 23242511
Manufacturer PN: 03027
$21.20 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Ball End Center Cutting Single End Stub Length, Series: 180MA, 3/64 in Diameter Cutter, 1-1/2 in Overall Length, 3/32 in Length of Cut, 2 Flutes, Spiral Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Plain/Round Shank, 1-13/32 in Shank Length, Solid Submicron Carbide, TiALN Coated

  • Features

  • Shorter flute length for rigidity
  • Extremely versatile
  • Up to 40% faster than uncoated
  • Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)

Specifications

ApplicationDry or Semi-Dry Machining
Cutter Diameter3/64 in
Cutting DirectionRight Hand
FinishTiALN Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut3/32 in
MaterialSolid Submicron Carbide
Number of Flutes2
Overall Length1-1/2 in
Series180MA
Shank Diameter1/8 in
Shank Length1-13/32 in
Shank TypePlain/Round
TypeBall End Center Cutting Single End Stub Length

Additional Information

Country of OriginUS
