Midland Industries MIDM 22013

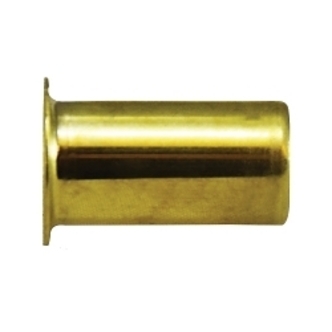

Midland Industries 22013 Sleeve Tube Insert, 1/2 in, Compression, Brass
Invoice description:
1/2 Brass Insert .372od .72lgth
Factory Order
Midland Industries Tube Insert, Sleeve, Insert, 1/2 in Nominal, Compression, 0.062 in Thickness, 200 psi, -65 to 250 deg F, Brass, 0.372 in OD x 0.72 in L
Features
- Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
- Fair resistance use long nut when greater vibration resistance is needed
- /-0.02 tolerance on all dimensions
- Not recommended for steel tubing
Specifications
ApplicationFor use with aluminum, copper, brass and thermoplastic tubing
Dimensions0.372 in OD x 0.72 in L
End StyleCompression
Fitting/Connector TypeInsert
MaterialBrass
Nominal Size1/2 in
Pressure Rating200 psi
Temperature Rating-65 to 250 deg F
Thickness0.062 in
TypeSleeve
Additional Information
Standards/ApprovalASA|ASME and SAE
Country of OriginCN
