Midland Industries MIDM 18176

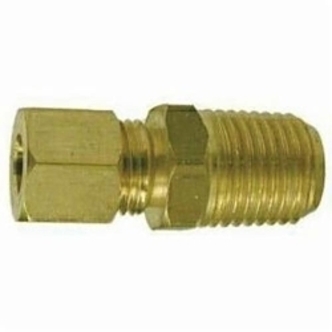

Midland Industries 18176 Tube-to-Pipe Adapter, 1/8 in, Compression x MNPTF, Brass, Import
Factory Order
Midland Industries Tube-to-Pipe Adapter, Adapter, 1/8 in Nominal, Compression x MNPTF, 0.43 in Hex, 400 psi, -65 to 250 deg F, Brass, Import
Features
- Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
- Fair resistance use long nut when greater vibration resistance is needed
- /-0.02 tolerance on all dimensions
- Not recommended for steel tubing
Specifications
ApplicationFor use with aluminum, copper, brass and thermoplastic tubing
Domestic/ImportImport
End StyleCompression x MNPTF
Fitting/Connector TypeAdapter
Hex Size0.43 in
MaterialBrass
Nominal Size1/8 in
Pressure Rating400 psi
Temperature Rating-65 to 250 deg F
