Midland Industries MIDM 18124

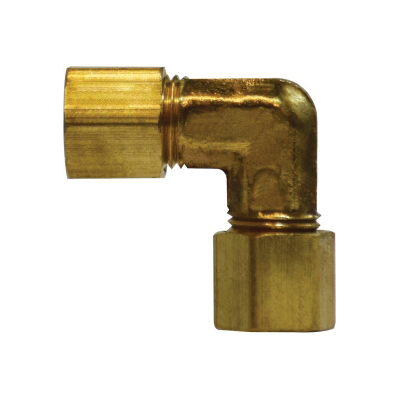

Midland Industries 18124 90 deg Union Elbow, 1/4 in Nominal, Compression End Style, CA377 Brass
Invoice description:
1/4 Compression Elbow
Factory Order
Midland Industries Union Elbow, 90 deg Elbow Fitting/Connector, 1/4 in Nominal, Compression End Style, 300 psi Pressure, -65 to 250 deg F, CA377 Brass, Forged Method of Manufacture
Features
- Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
- Fair resistance use long nut when greater vibration resistance is needed
- /-0.02 tolerance on all dimensions
- Not recommended for steel tubing
- 0.38 in body size
Specifications
ApplicationFor use with aluminum, copper, brass and thermoplastic tubing
End StyleCompression
Fitting/Connector Type90 deg Elbow
MaterialCA377 Brass
Method of ManufactureForged
Nominal Size1/4 in
Pressure Rating300 psi
Temperature Rating-65 to 250 deg F
Additional Information
Standards/ApprovalASA|ASME and SAE 060201
Country of OriginUS
