Midland Industries MIDM 18069

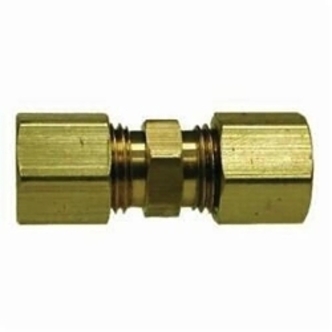

Midland Industries 18069 Tube Union, 5/8 in Nominal, Compression End Style, Brass

Invoice description: 5/8 Compression Union

UNSPSC: 40183103
Manufacturer PN: 18069
$10.54 EA
Factory Order
Estimated to ship in 7 days
QTY:


Midland Industries Tube Union, Coupling Fitting/Connector, 5/8 in Nominal, Compression End Style, 0.81 in Hex, 150 psi Pressure, -65 to 250 deg F, Brass

  • Features

  • Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
  • Fair resistance use long nut when greater vibration resistance is needed
  • /-0.02 tolerance on all dimensions
  • Not recommended for steel tubing

Specifications

ApplicationFor use with aluminum, copper, brass and thermoplastic tubing
End StyleCompression
Fitting/Connector TypeCoupling
Hex Size0.81 in
MaterialBrass
Nominal Size5/8 in
Pressure Rating150 psi
Temperature Rating-65 to 250 deg F

Additional Information

Standards/ApprovalASA|ASME and SAE 060101BA
Country of OriginTW
