Midland Industries MIDM 18003

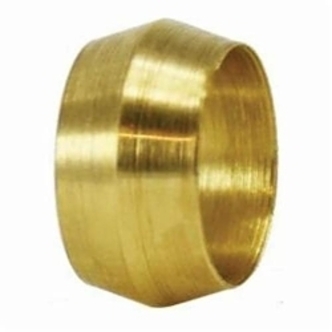

Midland Industries 18003 Ferrule Tube Sleeve, 1/4 in, Compression, Brass
Invoice description:
1/4 Compression Sleeve
Factory Order
Midland Industries Tube Sleeve, Ferrule, Sleeve, 1/4 in Nominal, Compression, 300 psi, -65 to 250 deg F, Brass, 0.25 in L x 0.34 in H
Features
- Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
- Fair resistance use long nut when greater vibration resistance is needed
- /-0.02 tolerance on all dimensions
- Not recommended for steel tubing
Specifications
ApplicationFor use with aluminum, copper, brass and thermoplastic tubing
Dimensions0.25 in L x 0.34 in H
End StyleCompression
Fitting/Connector TypeSleeve
MaterialBrass
Nominal Size1/4 in
Pressure Rating300 psi
Temperature Rating-65 to 250 deg F
TypeFerrule
Additional Information
Standards/ApprovalASA|ASME and SAE 060115
Country of OriginUS
