Midland Industries MIDM 18002

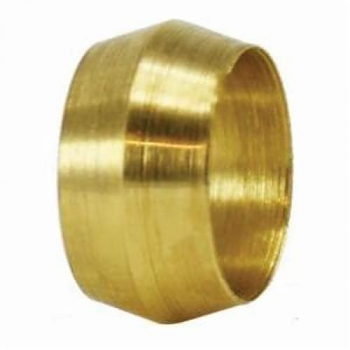

Midland Industries 18002 Ferrule Tube Sleeve, 3/16 in, Compression, Brass
Invoice description:
Sleeve Brass 3/16" Cmp R
Factory Order
Midland Industries Tube Sleeve, Ferrule, Sleeve, 3/16 in Nominal, Compression, 400 psi, -65 to 250 deg F, Brass, 0.22 in L x 0.27 in H
Features
- Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
- Fair resistance use long nut when greater vibration resistance is needed
- /-0.02 tolerance on all dimensions
- Not recommended for steel tubing
Specifications
ApplicationFor use with aluminum, copper, brass and thermoplastic tubing
Dimensions0.22 in L x 0.27 in H
End StyleCompression
Fitting/Connector TypeSleeve
MaterialBrass
Nominal Size3/16 in
Pressure Rating400 psi
Temperature Rating-65 to 250 deg F
TypeFerrule
Additional Information
Standards/ApprovalASA|ASME and SAE 060115
Country of OriginUS
