Iscar ISCAR 6411297

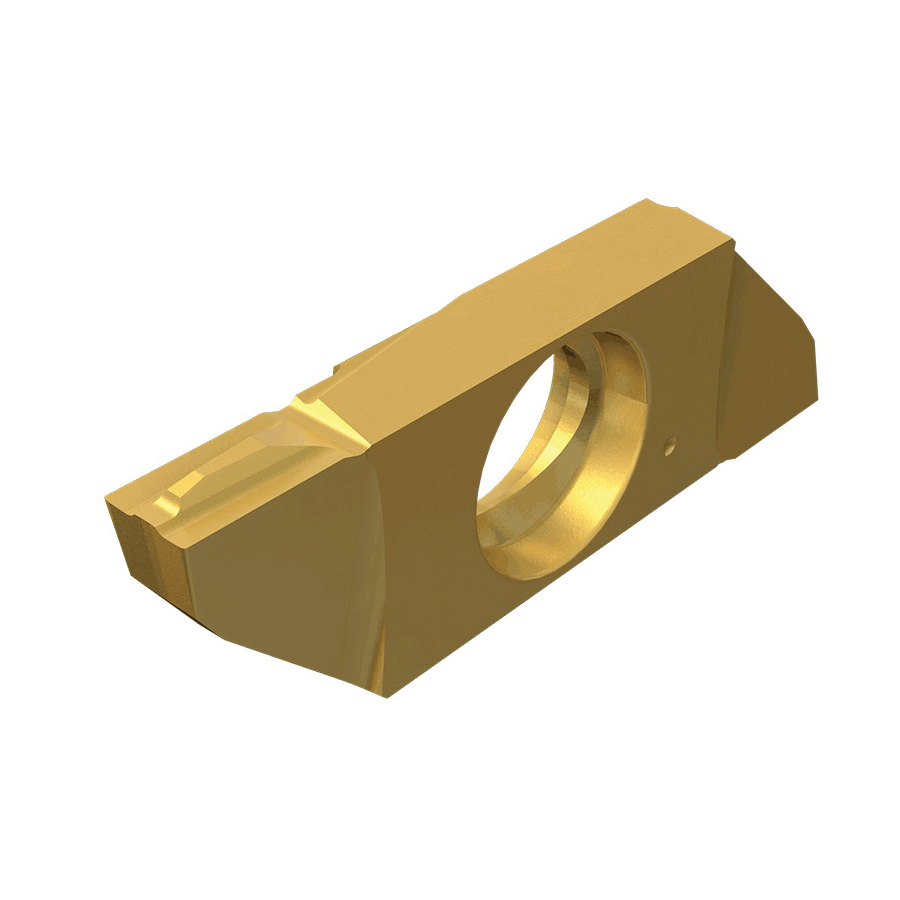

Iscar 6411297 SWISSCUT Turning Insert, ANSI Code: SCIR 22-AD08-24K8, SCIR Insert, 22 Insert
Invoice description:
Scir 22-ad08-24k8 Ic1008
Factory Order
Iscar Turning Insert, Series: SWISSCUT, SCIR Insert, 22 Insert, 7 mm Inscribed Circle, 3 mm Thickness, 0.08 mm Corner Radius, ANSI Code: SCIR 22-AD08-24K8, ISO Code: SCIR/L-22-AD
Features
- Turning inserts with a frontal relief angle used on Swiss type automatics and small CNC lathes
Specifications
ApplicationGroove Turning and Parting
ANSI CodeSCIR 22-AD08-24K8
Corner Radius0.08 mm
Inscribed Circle7 mm
Insert Size22
Insert StyleSCIR
ISO CodeSCIR/L-22-AD
SeriesSWISSCUT
Thickness3 mm
Additional Information
Standards/ApprovalISO 13399
