Iscar ISCAR 5700424

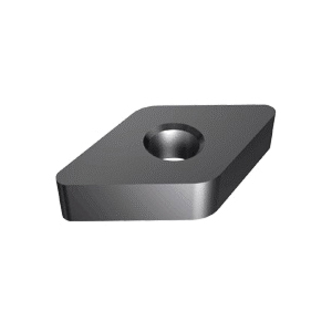

Iscar 5700424 ISOTURN 2-Sided Turning Insert, ANSI Code: DNGA 432-T IN23, DNGA Insert, Material Grade: H, K, 432 Insert, Rhombic Shape, 15 Seat, For Use On Cast Iron and Hardened Steel, Ceramic, Manufacturers Grade: IN23
Invoice description:
Dnga 432t In23
In stock
(10)
Iscar Turning Insert, 2-Sided, Series: ISOTURN, DNGA Insert, 432 Insert, Rhombic, 3.5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 15 Seat, T Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IN23, ANSI Code: DNGA 432-T IN23, ISO Code: DNGA 150408T IN23, 55 deg Included Angle, 0 deg Relief Angle, Ceramic, Uncoated, Material Grade: H, K, For Use On: Cast Iron and Hardened Steel
Features
- Used for machining cast iron and hardened steel
- Used for machining gray and nodular cast iron and hardened steel at medium to finishing conditions
- Without chipbreaker with hole
Specifications
ANSI CodeDNGA 432-T IN23
ChipbreakerT
Corner Radius0.8 mm
FinishUncoated
For Use OnCast Iron and Hardened Steel
Included Angle55 deg
Inscribed Circle12.7 mm
Insert Size432
Insert StyleDNGA
ISO CodeDNGA 150408T IN23
Manufacturers GradeIN23
MaterialCeramic
Material GradeH, K
Maximum Depth of Cut3.5 mm
Relief Angle0 deg
Seat Size15
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type2-Sided
