Iscar ISCAR 5669385

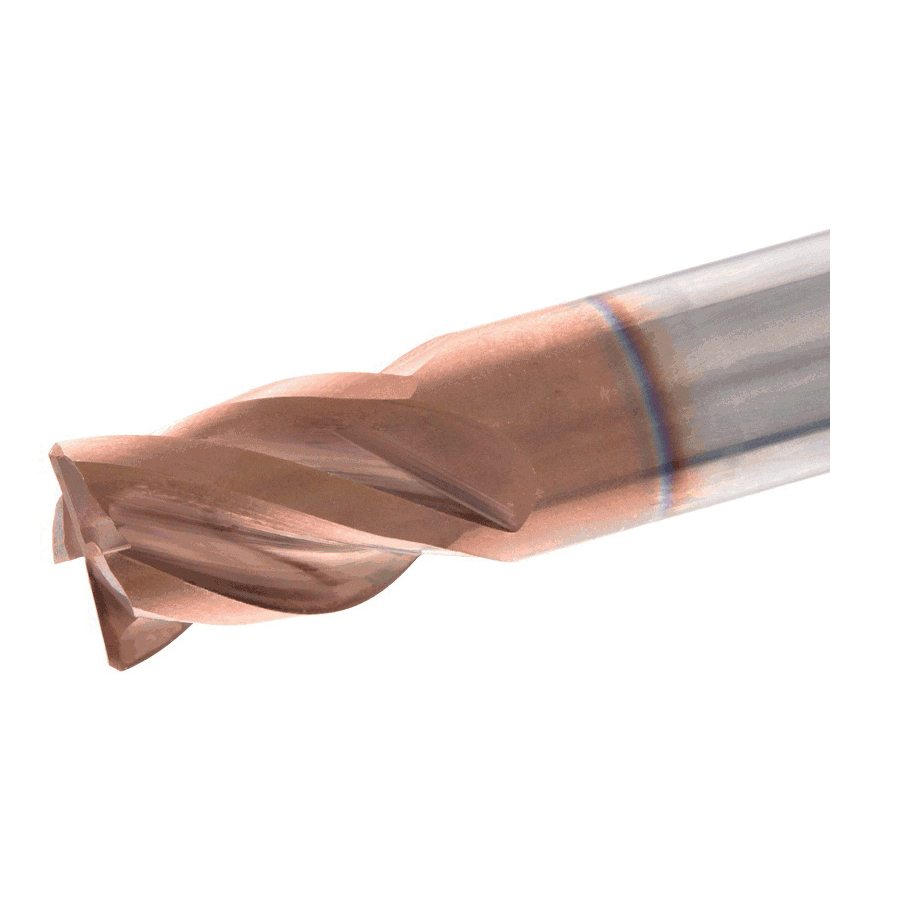

Iscar 5669385 SOLID MILL CHATTERFREE Corner Chamfer End Mill, 1/4 in Dia Cutter, 1/4 in Length of Cut, 4 Flutes, 1/4 in Dia Shank, 2-1/2 in OAL
Invoice description:
Eci-h4s 250-250c250cfe2. 5 Ic608 1/4x1/4 X 2.0 4f
Factory Order
Iscar Corner Chamfer End Mill, Series: SOLID MILL CHATTERFREE, 1/4 in Cutter Dia, 2-1/2 in Overall Length, 1/4 in Length of Cut, 4 Flutes, Spiral Flute, 1/4 in Shank Dia, Right Hand Cutting, 35/37 deg Helix Angle, Cylindrical Shank, Solid Carbide
Features
- Short, 4-flute end mills with different helix (35 deg and 37 deg) and variable pitch for chatter dampening
- Used for very high material removal rates roughing and finishing operations
- Full slot milling - up to 1XD
Specifications
ApplicationMilling
Cutter Diameter1/4 in
Cutting DirectionRight Hand
Flute TypeSpiral
Helix Angle35/37 deg
Length of Cut1/4 in
MaterialSolid Carbide
Number of Flutes4
Overall Length2-1/2 in
SeriesSOLID MILL CHATTERFREE
Shank Diameter1/4 in
Shank TypeCylindrical
Additional Information
Standards/ApprovalISO 13399
