Iscar ISCAR 5667183

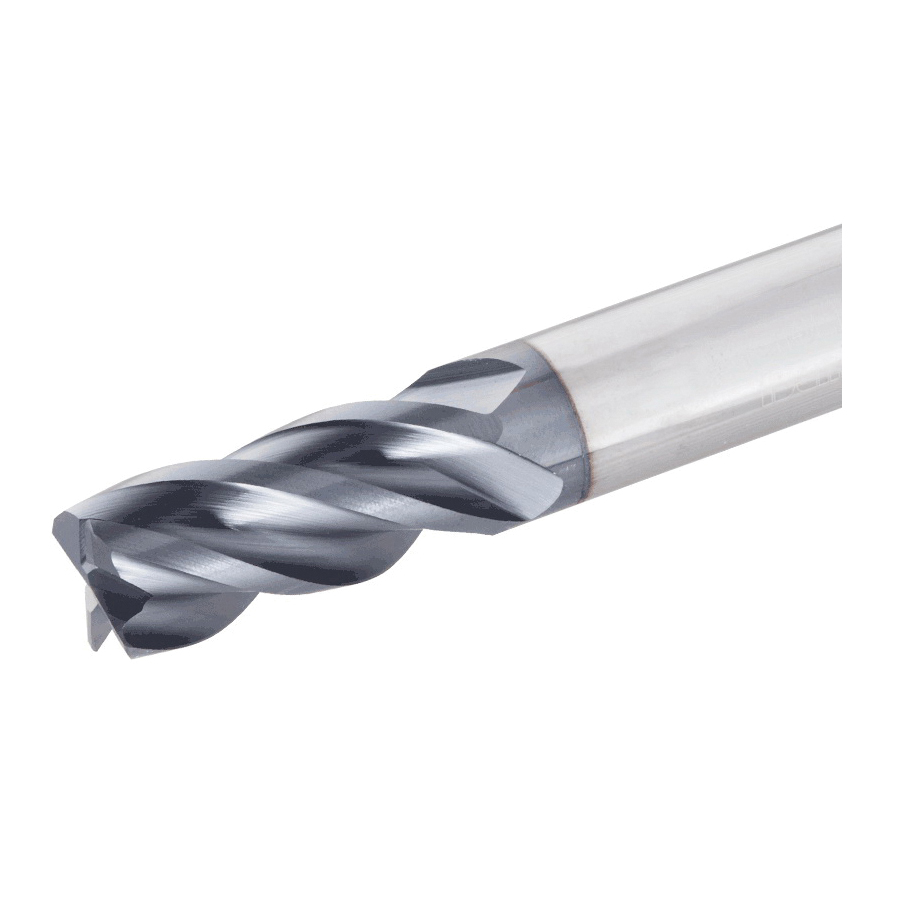

Iscar 5667183 SOLID MILL CHATTERFREE TI-TURBO Corner Chamfer End Mill, 3/4 in Dia Cutter, 0.04 in Corner Radius, 1-1/2 in Length of Cut, 4 Flutes, 3/4 in Dia Shank, 4 in OAL

UNSPSC: 27112803
Manufacturer PN: 5667183
$497.04 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Corner Chamfer End Mill, Series: SOLID MILL CHATTERFREE TI-TURBO, 3/4 in Cutter Dia, 0.04 in Corner Radius, 4 in Overall Length, 1-1/2 in Length of Cut, 4 Flutes, Spiral Flute, 3/4 in Shank Dia, Right Hand Cutting, 35/37 deg Helix Angle, Cylindrical Shank, Solid Carbide

  • Features

  • 4-flute end mills with different helix (35 deg and 37 deg), chamfered cutting edges and variable pitch for chatter dampening with assorted radii
  • Used for high titanium removal rates
  • Full slot milling - up to 2XD

Specifications

ApplicationMilling
Corner Radius0.04 in
Cutter Diameter3/4 in
Cutting DirectionRight Hand
Flute TypeSpiral
Helix Angle35/37 deg
Length of Cut1-1/2 in
MaterialSolid Carbide
Number of Flutes4
Overall Length4 in
SeriesSOLID MILL CHATTERFREE TI-TURBO
Shank Diameter3/4 in
Shank TypeCylindrical
