Iscar ISCAR 5667182

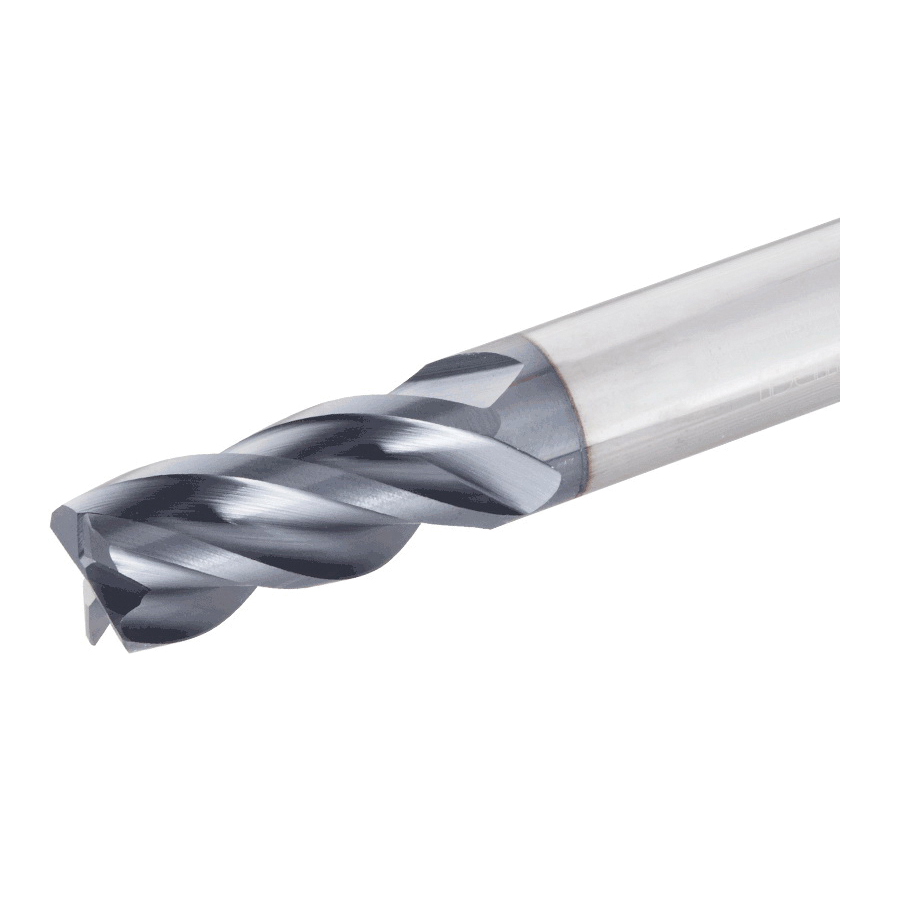

Iscar 5667182 SOLID MILL CHATTERFREE TI-TURBO Corner Chamfer End Mill, 5/8 in Dia Cutter, 0.03 in Corner Radius, 1-1/4 in Length of Cut, 4 Flutes, 5/8 in Dia Shank, 3-1/2 in OAL

Invoice description: Ecki-h4r 750-1.50w04cf-4 . Klune Pricing

UNSPSC: 27112803
Manufacturer PN: 5667182
$311.85 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Corner Chamfer End Mill, Series: SOLID MILL CHATTERFREE TI-TURBO, 5/8 in Cutter Dia, 0.03 in Corner Radius, 3-1/2 in Overall Length, 1-1/4 in Length of Cut, 4 Flutes, Spiral Flute, 5/8 in Shank Dia, Right Hand Cutting, 35/37 deg Helix Angle, Cylindrical/Weldon Shank, Solid Carbide

  • Features

  • 4-flute end mills with different helix (35 deg and 37 deg), chamfered cutting edges and variable pitch for chatter dampening with assorted radii
  • Used for high titanium removal rates
  • Full slot milling - up to 2XD

Specifications

ApplicationMilling
Corner Radius0.03 in
Cutter Diameter5/8 in
Cutting DirectionRight Hand
Flute TypeSpiral
Helix Angle35/37 deg
Length of Cut1-1/4 in
MaterialSolid Carbide
Number of Flutes4
Overall Length3-1/2 in
SeriesSOLID MILL CHATTERFREE TI-TURBO
Shank Diameter5/8 in
Shank TypeCylindrical/Weldon

Additional Information

Standards/ApprovalISO 13399
