Iscar ISCAR 5667179

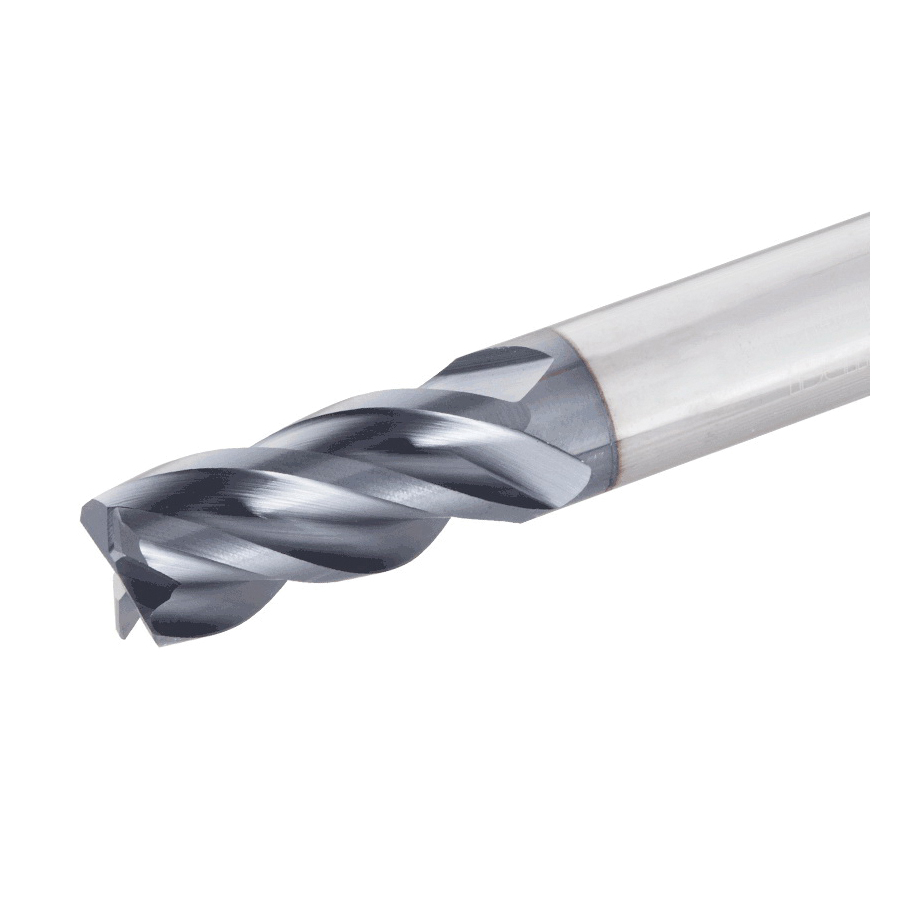

Iscar 5667179 SOLID MILL CHATTERFREE TI-TURBO Corner Chamfer End Mill, 1/2 in Dia Cutter, 0.023 in Corner Radius, 1 in Length of Cut, 4 Flutes, 1/2 in Dia Shank, 3 in OAL

Invoice description: Ecki-h4r 500-1.0c023cf-3 Ic Ic900 End Mill 4-fl

UNSPSC: 27112803
Manufacturer PN: 5667179
$195.95 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Corner Chamfer End Mill, Series: SOLID MILL CHATTERFREE TI-TURBO, 1/2 in Cutter Dia, 0.023 in Corner Radius, 3 in Overall Length, 1 in Length of Cut, 4 Flutes, Spiral Flute, 1/2 in Shank Dia, Right Hand Cutting, 35/37 deg Helix Angle, Cylindrical/Weldon Shank, Solid Carbide

  • Features

  • 4-flute end mills with different helix (35 deg and 37 deg), chamfered cutting edges and variable pitch for chatter dampening with assorted radii
  • Used for high titanium removal rates
  • Full slot milling - up to 2XD

Specifications

ApplicationMilling
Corner Radius0.023 in
Cutter Diameter1/2 in
Cutting DirectionRight Hand
Flute TypeSpiral
Helix Angle35/37 deg
Length of Cut1 in
MaterialSolid Carbide
Number of Flutes4
Overall Length3 in
SeriesSOLID MILL CHATTERFREE TI-TURBO
Shank Diameter1/2 in
Shank TypeCylindrical/Weldon

Additional Information

Standards/ApprovalISO 13399
