Iscar ISCAR 5667178

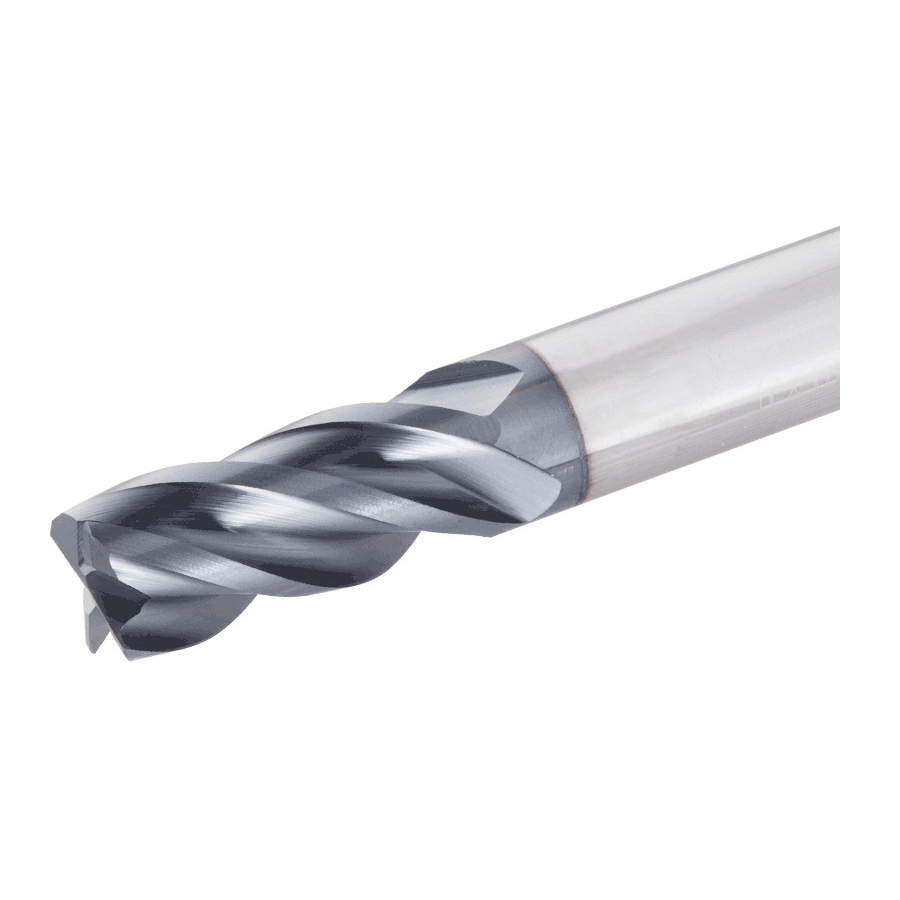

Iscar 5667178 SOLID MILL CHATTERFREE TI-TURBO Corner Chamfer End Mill, 3/8 in Dia Cutter, 0.02 in Corner Radius, 3/4 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 3 in OAL
Invoice description:
Ecki-h4r 375-750w02cf-3.
Factory Order
Iscar Corner Chamfer End Mill, Series: SOLID MILL CHATTERFREE TI-TURBO, 3/8 in Cutter Dia, 0.02 in Corner Radius, 3 in Overall Length, 3/4 in Length of Cut, 4 Flutes, Spiral Flute, 3/8 in Shank Dia, Right Hand Cutting, 35/37 deg Helix Angle, Cylindrical/Weldon Shank, Solid Carbide
Features
- 4-flute end mills with different helix (35 deg and 37 deg), chamfered cutting edges and variable pitch for chatter dampening with assorted radii
- Used for high titanium removal rates
- Full slot milling - up to 2XD
Specifications
ApplicationMilling
Corner Radius0.02 in
Cutter Diameter3/8 in
Cutting DirectionRight Hand
Flute TypeSpiral
Helix Angle35/37 deg
Length of Cut3/4 in
MaterialSolid Carbide
Number of Flutes4
Overall Length3 in
SeriesSOLID MILL CHATTERFREE TI-TURBO
Shank Diameter3/8 in
Shank TypeCylindrical/Weldon
Additional Information
Standards/ApprovalISO 13399
