Iscar ISCAR 5667177

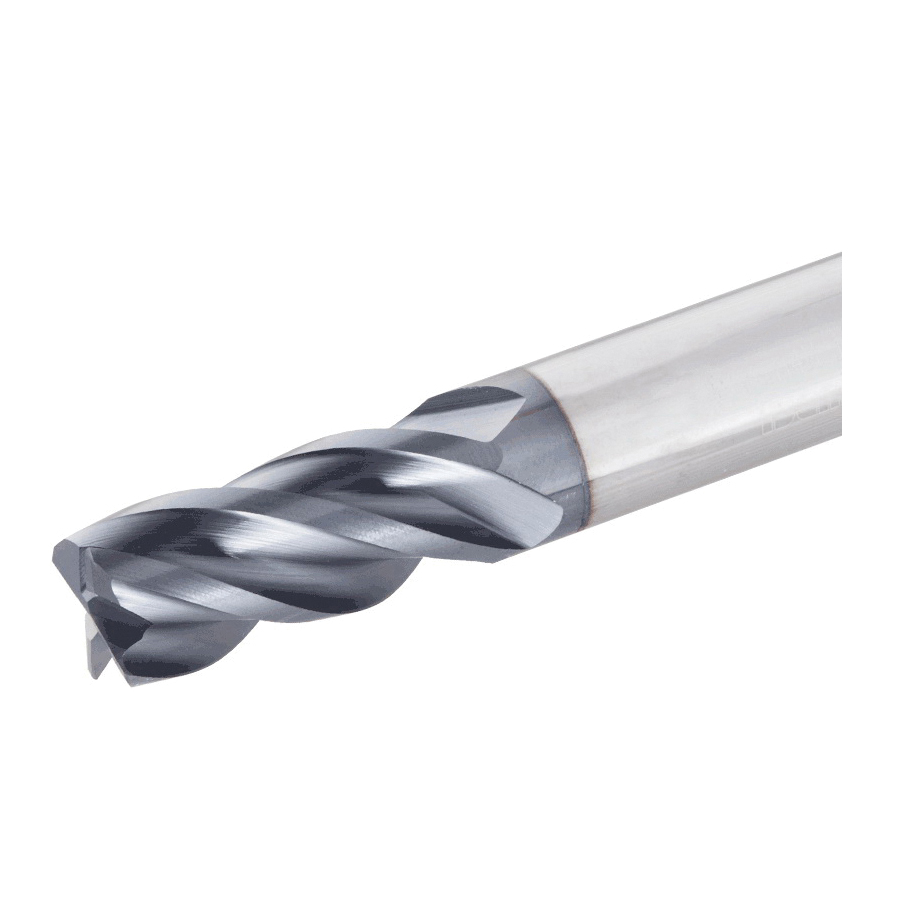

Iscar 5667177 SOLID MILL CHATTERFREE TI-TURBO Corner Chamfer End Mill, 3/8 in Dia Cutter, 0.02 in Corner Radius, 3/4 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 3 in OAL

Invoice description: End Mill 3/8 X3/4x 3" Oa L, 4-fl Ecki-h4r 375-750

UNSPSC: 27112803
Manufacturer PN: 5667177
$138.60 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Corner Chamfer End Mill, Series: SOLID MILL CHATTERFREE TI-TURBO, 3/8 in Cutter Dia, 0.02 in Corner Radius, 3 in Overall Length, 3/4 in Length of Cut, 4 Flutes, Spiral Flute, 3/8 in Shank Dia, Right Hand Cutting, 35/37 deg Helix Angle, Cylindrical Shank, Solid Carbide

  • Features

  • 4-flute end mills with different helix (35 deg and 37 deg), chamfered cutting edges and variable pitch for chatter dampening with assorted radii
  • Used for high titanium removal rates
  • Full slot milling - up to 2XD

Specifications

ApplicationMilling
Corner Radius0.02 in
Cutter Diameter3/8 in
Cutting DirectionRight Hand
Flute TypeSpiral
Helix Angle35/37 deg
Length of Cut3/4 in
MaterialSolid Carbide
Number of Flutes4
Overall Length3 in
SeriesSOLID MILL CHATTERFREE TI-TURBO
Shank Diameter3/8 in
Shank TypeCylindrical

Additional Information

Standards/ApprovalISO 13399
