Iscar ISCAR 5623220

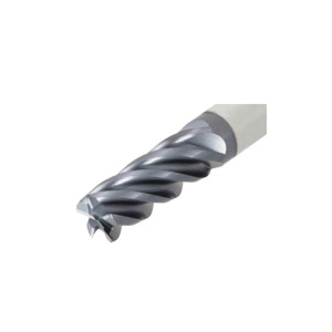

Iscar 5623220 CHATTERFREE Corner Chamfer End Mill, 3/4 in Dia Cutter, 0.12 in Corner Radius, 1.87 in Length of Cut, 5 Flutes, 3/4 in Dia Shank, 5 in OAL
Invoice description:
Eci-e5r750-1.87c75cf12
Factory Order
Iscar Corner Chamfer End Mill, Series: CHATTERFREE, 3/4 in Cutter Dia, 0.12 in Corner Radius, 5 in Overall Length, 1.87 in Length of Cut, 5 Flutes, Spiral Flute, 3/4 in Shank Dia, Right Hand Cutting, 38 deg Helix Angle, Cylindrical Shank, Solid Carbide
Features
- 5-flute, 38 deg helix with variable pitch for roughing and finishing operations
- High material removal rates chatter free
- Used for machining alloyed and stainless steel, titanium and exotic materials
- Full slot milling - up to 1XD
Specifications
ApplicationMilling
Corner Radius0.12 in
Cutter Diameter3/4 in
Cutting DirectionRight Hand
Flute TypeSpiral
Helix Angle38 deg
Length of Cut1.87 in
MaterialSolid Carbide
Number of Flutes5
Overall Length5 in
SeriesCHATTERFREE
Shank Diameter3/4 in
Shank TypeCylindrical
Additional Information
Standards/ApprovalISO 13399
