Iscar ISCAR 5623156

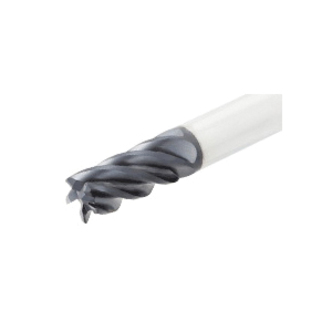

Iscar 5623156 CHATTERFREE Medium Length Single End End Mill, 1/2 in Dia Cutter, 0.025 in Corner Radius, 1-1/4 in Length of Cut, 5 Flutes, 1/2 in Dia Shank, 3-1/2 in OAL, PVD-TiAlN Coated
Invoice description:
End Mill 1/2x1-1/4x3-1/2 Oal .025cr, 5-fl
Factory Order
Iscar End Mill, Medium Length Single End, Series: CHATTERFREE, 1/2 in Diameter Cutter, 0.025 in Corner Radius, 3-1/2 in Overall Length, 1-1/4 in Length of Cut, 5 Flutes, Right Spiral Flute, 1/2 in Shank Diameter, Right Hand Cutting Direction, 36 to 38 deg Helix Angle, Weldon Flat Shank, ANSI Code: ECI-H5R 500-1.25W025CF, Submicron Solid Carbide, PVD-TiAlN Coated
Features
- IC900 grade - a tough sub micron PVD TiAlN coated grade
- Suitable for medium to high cutting speed
- Designed for machining of heat resistant alloys, austenitic stainless steel, hard alloys and carbon steel at interrupted cuts
- 5-flute end mills with different helix (36 to 38 deg) and variable pitch for chatter dampening with assorted radii
- Used for very high material removal rates roughing and finishing operations
Specifications
ApplicationHelical Interpolation, Rampdown, Shouldering and Slotting
ANSI CodeECI-H5R 500-1.25W025CF
Corner Radius0.025 in
Cutter Diameter1/2 in
Cutting DirectionRight Hand
FinishPVD-TiAlN Coated
Flute TypeRight Spiral
Helix Angle36 to 38 deg
Length of Cut1-1/4 in
MaterialSubmicron Solid Carbide
Number of Flutes5
Overall Length3-1/2 in
SeriesCHATTERFREE
Shank Diameter1/2 in
Shank TypeWeldon Flat
TypeMedium Length Single End
Additional Information
Country of OriginIL
