Iscar ISCAR 5623155

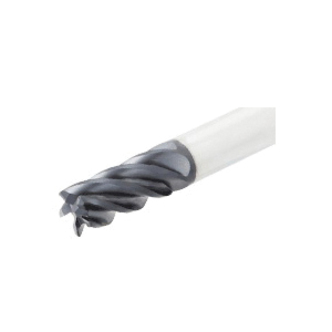

Iscar 5623155 CHATTERFREE Corner Chamfer End Mill, 1/2 in Dia Cutter, 0.025 in Corner Radius, 1-1/4 in Length of Cut, 5 Flutes, 1/2 in Dia Shank, 3-1/2 in OAL

Invoice description: Eci-h5r 500-1.25c025cf90

UNSPSC: 27112803
Manufacturer PN: 5623155
$242.55 EA
Factory Order
Estimated to ship in 7 days
QTY:


Iscar Corner Chamfer End Mill, Series: CHATTERFREE, 1/2 in Cutter Dia, 0.025 in Corner Radius, 3-1/2 in Overall Length, 1-1/4 in Length of Cut, 5 Flutes, Spiral Flute, 1/2 in Shank Dia, Right Hand Cutting, 36/38 deg Helix Angle, Cylindrical Shank, Solid Carbide

  • Features

  • 5-flute end mills with different helix (36 to 38 deg) and variable pitch for chatter dampening with assorted radii
  • Used for very high material removal rates roughing and finishing operations

Specifications

ApplicationMilling
Corner Radius0.025 in
Cutter Diameter1/2 in
Cutting DirectionRight Hand
Flute TypeSpiral
Helix Angle36/38 deg
Length of Cut1-1/4 in
MaterialSolid Carbide
Number of Flutes5
Overall Length3-1/2 in
SeriesCHATTERFREE
Shank Diameter1/2 in
Shank TypeCylindrical

Additional Information

Standards/ApprovalISO 13399
