Iscar ISCAR 5623092

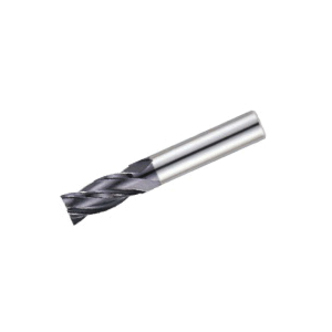

Iscar 5623092 CHATTERFREE Corner Chamfer End Mill, 1/2 in Dia Cutter, 0.023 in Corner Radius, 1 in Length of Cut, 4 Flutes, 1/2 in Dia Shank, 3 in OAL

UNSPSC: 27112803
Manufacturer PN: 5623092
$181.60 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Corner Chamfer End Mill, Series: CHATTERFREE, 1/2 in Cutter Dia, 0.023 in Corner Radius, 3 in Overall Length, 1 in Length of Cut, 4 Flutes, Spiral Flute, 1/2 in Shank Dia, Right Hand Cutting, 35/37 deg Helix Angle, Cylindrical/Weldon Shank, Solid Carbide

  • Features

  • 4-flute end mills with different helix (35 deg and 37 deg) and variable pitch for chatter dampening with assorted radii
  • Used for very high material removal rates roughing and finishing operations
  • Full slot milling - up to 2XD

Specifications

ApplicationHole Making
Corner Radius0.023 in
Cutter Diameter1/2 in
Cutting DirectionRight Hand
Flute TypeSpiral
Helix Angle35/37 deg
Length of Cut1 in
MaterialSolid Carbide
Number of Flutes4
Overall Length3 in
SeriesCHATTERFREE
Shank Diameter1/2 in
Shank TypeCylindrical/Weldon
