Iscar ISCAR 5600100

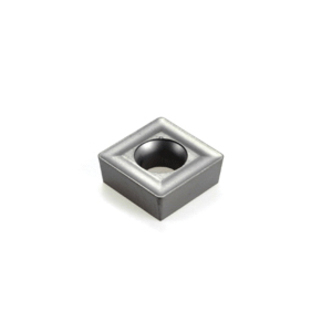

Iscar 5600100 ISOTURN Turning Insert, SCMT Insert, Material Grade: H, K, M, N, S, 120408 Insert, Squared Shape, 12 Seat, Positive Rake, For Use On Stainless Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum, Carbide
Invoice description:
Scmt 432-19 Ic20
Factory Order

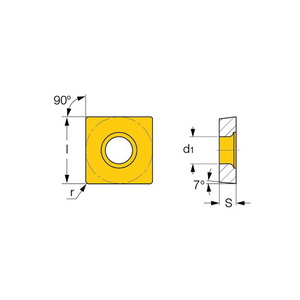

Iscar Turning Insert, Series: ISOTURN, SCMT Insert, 120408 Insert, Squared Shape, 8 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12.7 mm Width, 12.7 mm Length, 12 Seat, Positive Rake, 19 Chipbreaker, 0.8 mm Corner Radius, 5.5 mm Diameter Hole, Manufacturers Grade: IC20, ISO Code: SCMT 120408-19 IC20, 90 deg Included Angle, 7 deg Relief Angle, Carbide, Uncoated, Material Grade: H, K, M, N, S, For Use On: Stainless Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- An uncoated carbide grade
- Strong cutting edge, used at medium to high feeds
Specifications
Chipbreaker19
Corner Radius0.8 mm
FinishUncoated
For Use OnStainless Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Hole Diameter5.5 mm
Included Angle90 deg
Inscribed Circle12.7 mm
Insert Size120408
Insert StyleSCMT
ISO CodeSCMT 120408-19 IC20
Length12.7 mm
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, S
Maximum Depth of Cut8 mm
RakePositive
Relief Angle7 deg
Seat Size12
SeriesISOTURN
ShapeSquared
Thickness4.76 mm
Width12.7 mm
Additional Information
Country of OriginIS
