Iscar ISCAR 5599739

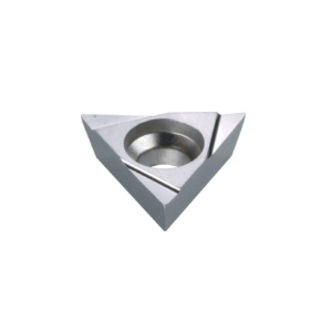

Iscar 5599739 ISOTURN Turning Insert, ANSI Code: TPGX 221-L, TPGX Insert, 221 Insert, Triangular Shape, Positive Rake, Manufacturers Grade: IC20
Invoice description:
Tpgx 221-l Ic20
Pack Size: 10
UNSPSC:
23242105
Manufacturer PN: 5599739
$13.04 EA
Factory OrderEstimated to ship in 14 days
Iscar Turning Insert, Series: ISOTURN, TPGX Insert, 221 Insert, Triangular, 1/4 in Inscribed Circle, 1/8 in Thickness, Positive Rake, 0.016 in Corner Radius, Manufacturers Grade: IC20, ANSI Code: TPGX 221-L, ISO Code: TPGX, 60 deg Included Angle, 11 deg Relief Angle
Features
- Triangular 11 deg positive flank inserts with a ground chipformer
- Used for finishing, provide excellent surface finish
- Suitable for a wide range of materials
Specifications
ApplicationISO Turning
ANSI CodeTPGX 221-L
Corner Radius0.016 in
Included Angle60 deg
Inscribed Circle1/4 in
Insert Size221
Insert StyleTPGX
ISO CodeTPGX
Manufacturers GradeIC20
RakePositive
Relief Angle11 deg
SeriesISOTURN
ShapeTriangular
Thickness1/8 in
Additional Information
Standards/ApprovalISO 13399
