Iscar ISCAR 5598717

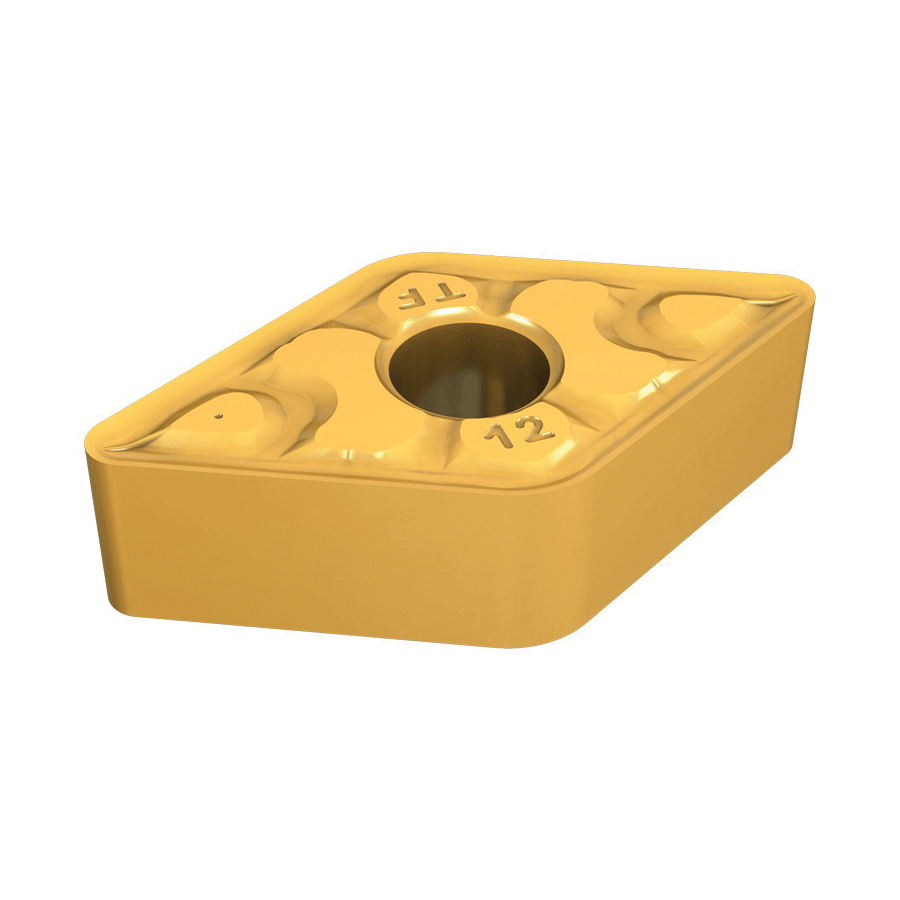

Iscar 5598717 ISOTURN Turning Insert, ANSI Code: DNMG 432-TF, DNMG Insert, 432 Insert, Rhombic Shape, Positive Rake, For Use On Carbon Steel, Alloy Steel, Stainless Steel and High Temperature Alloys, Manufacturers Grade: IC806
Invoice description:
Dnmg 432-tf Ic806
Pack Size: 10
UNSPSC:
23242105
Manufacturer PN: 5598717
$17.82 EA
Factory OrderEstimated to ship in 7 days
Iscar Turning Insert, Series: ISOTURN, DNMG Insert, 432 Insert, Rhombic, 1/2 in Inscribed Circle, 0.187 in Thickness, Positive Rake, 0.031 in Corner Radius, Manufacturers Grade: IC806, ANSI Code: DNMG 432-TF, ISO Code: DNMG/DNGG-TF, 55 deg Included Angle, For Use On: Carbon Steel, Alloy Steel, Stainless Steel and High Temperature Alloys
Features
- Double sided, 55 deg rhombic insert, positive rake angle that varies along the edge to negative in order to prevent chipping
- Special design reduces cratering
Specifications
ApplicationISO Turning and External 55 deg Diamond 93 deg Approach
ANSI CodeDNMG 432-TF
Corner Radius0.031 in
For Use OnCarbon Steel, Alloy Steel, Stainless Steel and High Temperature Alloys
Included Angle55 deg
Inscribed Circle1/2 in
Insert Size432
Insert StyleDNMG
ISO CodeDNMG/DNGG-TF
Manufacturers GradeIC806
RakePositive
SeriesISOTURN
ShapeRhombic
Thickness0.187 in
Additional Information
Standards/ApprovalISO 13399
