Iscar ISCAR 5598568

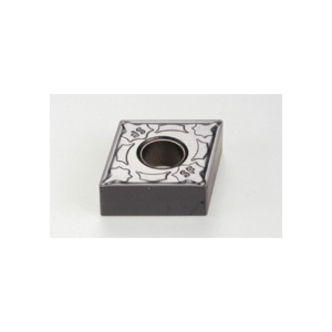

Iscar 5598568 ISOTURN Turning Insert, ANSI Code: CNGG 431-SF, CNGG Insert, 431 Insert, Rhombic Shape, Manufacturers Grade: IC507

Invoice description: Cngg 431-sf Ic507 Turning Insert 10/bx

Pack Size: 10
UNSPSC: 23242105
Manufacturer PN: 5598568
$19.97 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Turning Insert, Series: ISOTURN, CNGG Insert, 431 Insert, Rhombic, 1/2 in Inscribed Circle, 0.187 in Thickness, 0.016 in Corner Radius, Manufacturers Grade: IC507, ANSI Code: CNGG 431-SF, ISO Code: CNMG/CNGG-SF, 80 deg Included Angle

  • Features

  • Double sided 80 deg rhombic inserts for super finishing
  • Controls chip flow at very low feeds and depths of cut
  • Excellent crater wear resistance

Specifications

ApplicationISO Turning
ANSI CodeCNGG 431-SF
Corner Radius0.016 in
Included Angle80 deg
Inscribed Circle1/2 in
Insert Size431
Insert StyleCNGG
ISO CodeCNMG/CNGG-SF
Manufacturers GradeIC507
SeriesISOTURN
ShapeRhombic
Thickness0.187 in

Additional Information

Standards/ApprovalISO 13399
