Iscar ISCAR 5595961

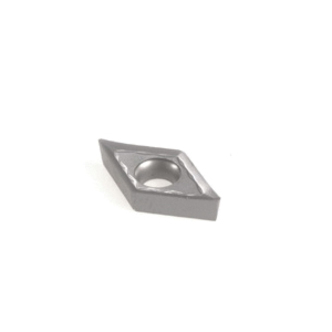

Iscar 5595961 ISOTURN Turning Insert, ANSI Code: DCGT 3-1-AS IC907, DCGT Insert, Material Grade: H, K, M, N, P, S, 3-1 Insert, Rhombic Shape, 11 Seat, Positive Rake, Carbide, Manufacturers Grade: IC907
Invoice description:
Dcgt 3-1-as Ic907
Factory Order

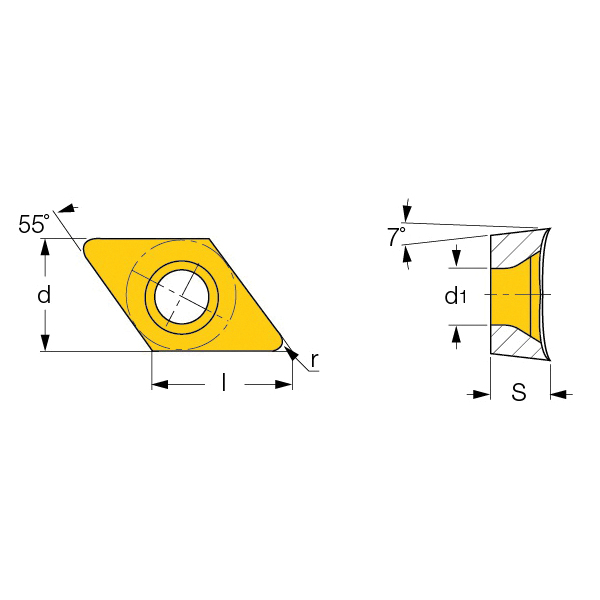

Iscar Turning Insert, Series: ISOTURN, DCGT Insert, 3-1 Insert, Rhombic, 2.5 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.97 mm Thickness, 11 Seat, Positive Rake, AS Chipbreaker, 0.4 mm Corner Radius, 4.4 mm Hole Dia, Manufacturers Grade: IC907, ANSI Code: DCGT 3-1-AS IC907, ISO Code: DCGT 11T304-AS IC907, 55 deg Included Angle, 7 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- Very positive rake angle and sharp cutting edge for machining aluminum
- Chipbreaker on one side, with hole and countersink
Specifications
ApplicationFor machining applications
ANSI CodeDCGT 3-1-AS IC907
ChipbreakerAS
Corner Radius0.4 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Hole Diameter4.4 mm
Included Angle55 deg
Inscribed Circle9.52 mm
Insert Size3-1
Insert StyleDCGT
ISO CodeDCGT 11T304-AS IC907
Manufacturers GradeIC907
MaterialCarbide
Material GradeH, K, M, N, P, S
Maximum Depth of Cut2.5 mm
RakePositive
Relief Angle7 deg
Seat Size11
SeriesISOTURN
ShapeRhombic
Thickness3.97 mm
Additional Information
Country of OriginIL
