Iscar ISCAR 5595309

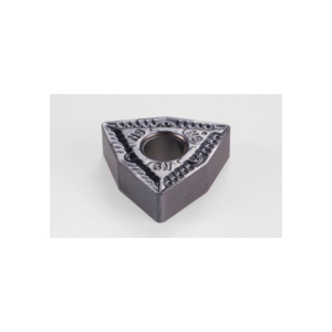

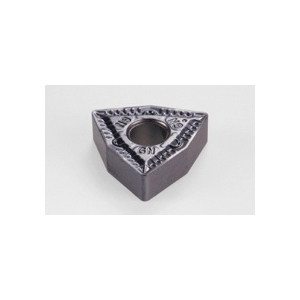

Iscar 5595309 ISOTURN 2-Sided Turning Insert, ANSI Code: WNMG 432-GN IC907, WNMG Insert, Material Grade: H, K, M, N, P, S, 432 Insert, Trigon Shape, 08 Seat, For Use On Stainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Invoice description:
Wnmg 432-gn Ic907
Factory Order

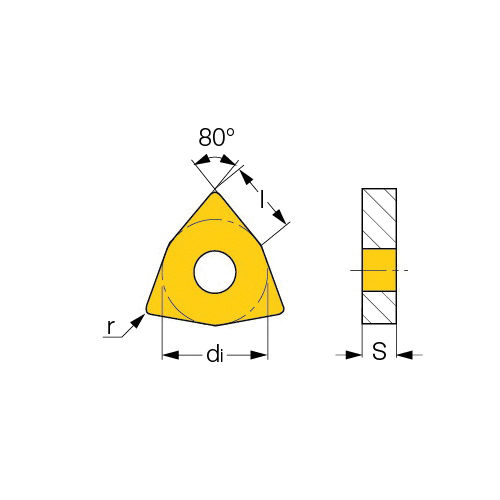

Iscar Turning Insert, 2-Sided, Series: ISOTURN, WNMG Insert, 432 Insert, Trigon, 4.5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 08 Seat, GN Chipbreaker, 0.8 mm Corner Radius, 0.203 in Hole Dia, Manufacturers Grade: IC907, ANSI Code: WNMG 432-GN IC907, ISO Code: WNMG 080408-GN IC907, 80 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- Secure cutting edge
- Chipbreaker on both sides, with hole
Specifications
ApplicationMedium and Semi-Roughing
ANSI CodeWNMG 432-GN IC907
ChipbreakerGN
Corner Radius0.8 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Hole Diameter0.203 in
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size432
Insert StyleWNMG
ISO CodeWNMG 080408-GN IC907
Manufacturers GradeIC907
MaterialCarbide
Material GradeH, K, M, N, P, S
Maximum Depth of Cut4.5 mm
Relief Angle0 deg
Seat Size08
SeriesISOTURN
ShapeTrigon
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
