Iscar ISCAR 5594957

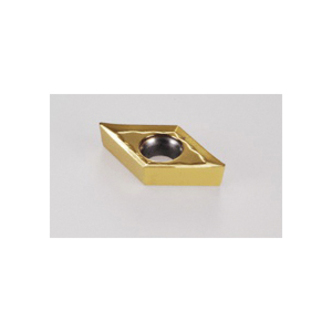

Iscar 5594957 ISOTURN Turning Insert, ANSI Code: DCGT 3-1-AS IC520, DCGT Insert, Material Grade: M, N, S, 3-1 Insert, Rhombic Shape, 11 Seat, Positive Rake, For Use On Stainless Steel, High Temperature Alloys and Aluminum, Carbide
Invoice description:
Dcgt 3-1-as Ic520
Factory Order
Iscar Turning Insert, Series: ISOTURN, DCGT Insert, 3-1 Insert, Rhombic, 2.5 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.97 mm Thickness, 11 Seat, Positive Rake, AS Chipbreaker, 0.4 mm Corner Radius, 4.4 mm Hole Dia, Manufacturers Grade: IC520, ANSI Code: DCGT 3-1-AS IC520, ISO Code: DCGT 11T304-AS IC520, 55 deg Included Angle, 7 deg Relief Angle, Carbide, PVD-TiCN+TiN Coated, Material Grade: M, N, S, For Use On: Stainless Steel, High Temperature Alloys and Aluminum
Features
- Very positive rake angle and sharp cutting edge for machining aluminum
- Chipbreaker on one side, with hole and countersink
Specifications
ApplicationFor machining applications
ANSI CodeDCGT 3-1-AS IC520
ChipbreakerAS
Corner Radius0.4 mm
FinishPVD-TiCN+TiN Coated
For Use OnStainless Steel, High Temperature Alloys and Aluminum
Hole Diameter4.4 mm
Included Angle55 deg
Inscribed Circle9.52 mm
Insert Size3-1
Insert StyleDCGT
ISO CodeDCGT 11T304-AS IC520
Manufacturers GradeIC520
MaterialCarbide
Material GradeM, N, S
Maximum Depth of Cut2.5 mm
RakePositive
Relief Angle7 deg
Seat Size11
SeriesISOTURN
ShapeRhombic
Thickness3.97 mm
