Iscar ISCAR 5594309

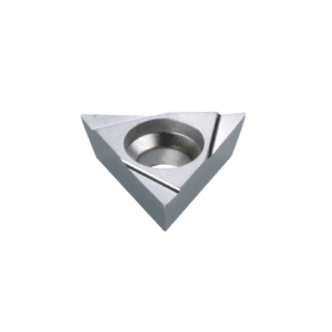

Iscar 5594309 ISOTURN Turning Insert, ANSI Code: TPGX 730-L, TPGX Insert, 730 Insert, Triangular Shape, Positive Rake, Manufacturers Grade: IC20
Invoice description:
Tpgx 730-l Ic20
Pack Size: 10
UNSPSC:
23242105
Manufacturer PN: 5594309
$13.04 EA
Factory OrderEstimated to ship in 14 days
Iscar Turning Insert, Series: ISOTURN, TPGX Insert, 730 Insert, Triangular, 0.219 in Inscribed Circle, 0.094 in Thickness, Positive Rake, 0.008 in Corner Radius, Manufacturers Grade: IC20, ANSI Code: TPGX 730-L, ISO Code: TPGX, 60 deg Included Angle, 11 deg Relief Angle
Features
- Triangular 11 deg positive flank inserts with a ground chipformer
- Used for finishing, provide excellent surface finish
- Suitable for a wide range of materials
Specifications
ApplicationISO Turning
ANSI CodeTPGX 730-L
Corner Radius0.008 in
Included Angle60 deg
Inscribed Circle0.219 in
Insert Size730
Insert StyleTPGX
ISO CodeTPGX
Manufacturers GradeIC20
RakePositive
Relief Angle11 deg
SeriesISOTURN
ShapeTriangular
Thickness0.094 in
Additional Information
Standards/ApprovalISO 13399
