Iscar ISCAR 5593787

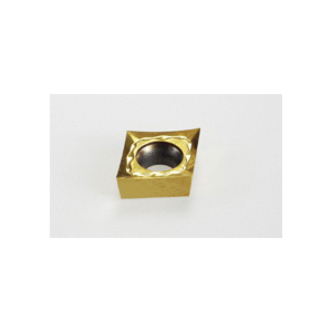

Iscar 5593787 1-Sided Turning Insert, ANSI Code: CCGT 3-0-AS IC520, CCGT Insert, Material Grade: M, N, S, 3-0 Insert, Rhombic Shape, 09 Seat, Positive Rake, For Use On Stainless Steel, High Temperature Alloys and Aluminum, Carbide
Invoice description:
Ccgt 3-0-as Ic520
Factory Order

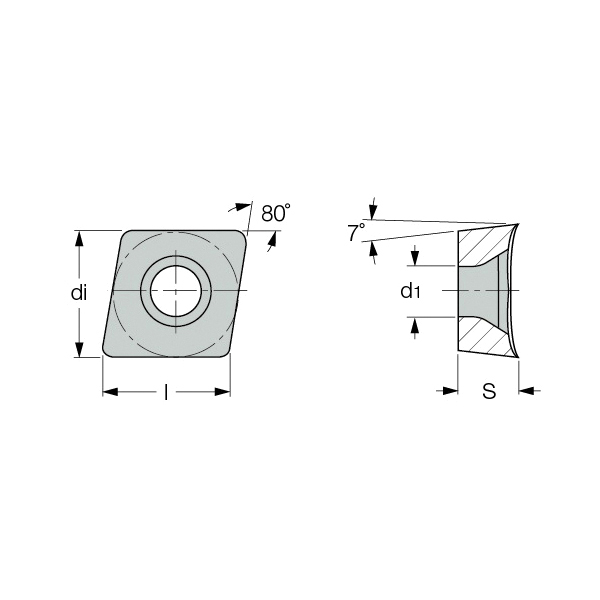

Iscar Turning Insert, 1-Sided, CCGT Insert, 3-0 Insert, Rhombic, 2.5 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.97 mm Thickness, 09 Seat, Positive Rake, AS Chipbreaker, 0.2 mm Corner Radius, 4.4 mm Hole Dia, Manufacturers Grade: IC520, ANSI Code: CCGT 3-0-AS IC520, ISO Code: CCGT 09T302-AS IC520, 80 deg Included Angle, 7 deg Relief Angle, Carbide, PVD-TiCN+TiN Coated, Material Grade: M, N, S, For Use On: Stainless Steel, High Temperature Alloys and Aluminum
Features
- Positive flank
- Very positive rake angle and sharp cutting edge for machining aluminum
- IC520 grade suitable for turning austenitic stainless steel, titanium and inconel
Specifications
ApplicationMachining Applications
ANSI CodeCCGT 3-0-AS IC520
ChipbreakerAS
Corner Radius0.2 mm
FinishPVD-TiCN+TiN Coated
For Use OnStainless Steel, High Temperature Alloys and Aluminum
Hole Diameter4.4 mm
Included Angle80 deg
Inscribed Circle9.52 mm
Insert Size3-0
Insert StyleCCGT
ISO CodeCCGT 09T302-AS IC520
Manufacturers GradeIC520
MaterialCarbide
Material GradeM, N, S
Maximum Depth of Cut2.5 mm
RakePositive
Relief Angle7 deg
Seat Size09
ShapeRhombic
Thickness3.97 mm
Type1-Sided
