Iscar ISCAR 5592532

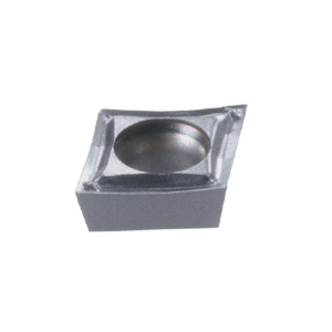

Iscar 5592532 ISOTURN Turning Insert, ANSI Code: CPGT 3-1-SM IC907, CPGT Insert, Material Grade: H, K, M, N, P, S, 3-1 Insert, Rhombic Shape, 09 Seat, Positive Rake, Carbide, Manufacturers Grade: IC907
Invoice description:
Cpgt 3-1-sm Ic907
Factory Order

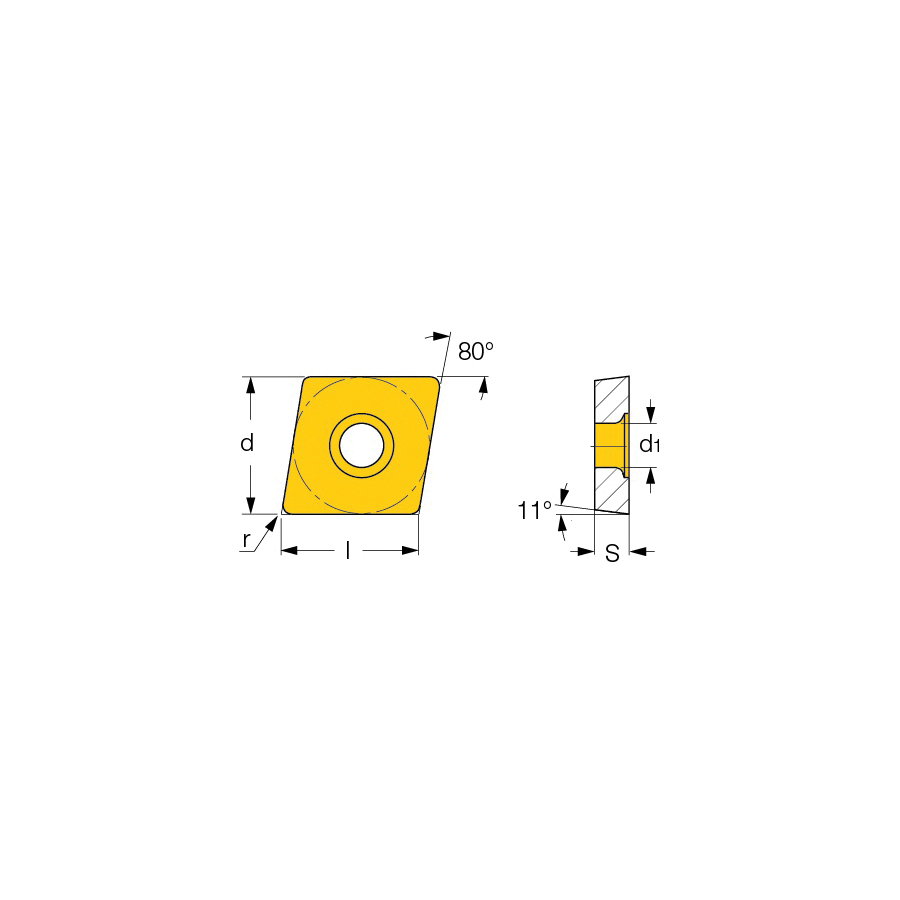

Iscar Turning Insert, Series: ISOTURN, CPGT Insert, 3-1 Insert, Rhombic, 3.5 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.97 mm Thickness, 09 Seat, Positive Rake, SM Chipbreaker, 0.4 mm Corner Radius, 4.4 mm Hole Dia, Manufacturers Grade: IC907, ANSI Code: CPGT 3-1-SM IC907, ISO Code: CPGT 09T304-SM IC907, 80 deg Included Angle, 11 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- Chip breaking in moderate feed range
- Positive rake, low cutting forces
- Used for a wide range of materials including soft and exotic alloys
- IC907 grade developed for machining of heat resistant alloys, austenitic stainless steel and hard steel
- Suitable for low-to-medium cutting speeds
- Chipbreaker on one side, with hole and countersink
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeCPGT 3-1-SM IC907
ChipbreakerSM
Corner Radius0.4 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Hole Diameter4.4 mm
Included Angle80 deg
Inscribed Circle9.52 mm
Insert Size3-1
Insert StyleCPGT
ISO CodeCPGT 09T304-SM IC907
Manufacturers GradeIC907
MaterialCarbide
Material GradeH, K, M, N, P, S
Maximum Depth of Cut3.5 mm
RakePositive
Relief Angle11 deg
Seat Size09
SeriesISOTURN
ShapeRhombic
Thickness3.97 mm
Additional Information
Country of OriginIL
