Iscar ISCAR 5592509

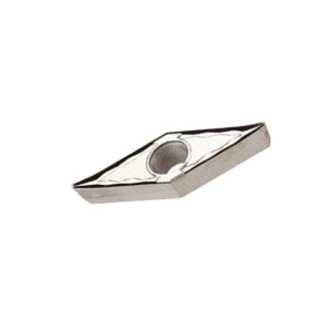

Iscar 5592509 ISOTURN 1-Sided Turning Insert, ANSI Code: VCGT 220-AS IC520, VCGT Insert, Material Grade: M, N, S, 220 Insert, Rhombic Shape, 11 Seat, Positive Rake, For Use On Stainless Steel, High Temperature Alloys and Aluminum, Carbide
Invoice description:
Vcgt 220-as Ic520
Factory Order
Iscar Turning Insert, 1-Sided, Series: ISOTURN, VCGT Insert, 220 Insert, Rhombic, 2.5 mm Maximum Depth of Cut, 6.35 mm Inscribed Circle, 3.18 mm Thickness, 11 Seat, Positive Rake, AS Chipbreaker, 0.2 mm Corner Radius, 2.9 mm Hole Dia, Manufacturers Grade: IC520, ANSI Code: VCGT 220-AS IC520, ISO Code: VCGT 110302-AS IC520, 35 deg Included Angle, 7 deg Relief Angle, Carbide, PVD-TiCN+TiN Coated, Material Grade: M, N, S, For Use On: Stainless Steel, High Temperature Alloys and Aluminum
Features
- Positive flank
- Very positive rake angle and sharp cutting edge for machining aluminum
- IC520 grade suitable for turning austenitic stainless steel, titanium and inconel
Specifications
ApplicationMachining Applications
ANSI CodeVCGT 220-AS IC520
ChipbreakerAS
Corner Radius0.2 mm
FinishPVD-TiCN+TiN Coated
For Use OnStainless Steel, High Temperature Alloys and Aluminum
Hole Diameter2.9 mm
Included Angle35 deg
Inscribed Circle6.35 mm
Insert Size220
Insert StyleVCGT
ISO CodeVCGT 110302-AS IC520
Manufacturers GradeIC520
MaterialCarbide
Material GradeM, N, S
Maximum Depth of Cut2.5 mm
RakePositive
Relief Angle7 deg
Seat Size11
SeriesISOTURN
ShapeRhombic
Thickness3.18 mm
Type1-Sided
Additional Information
Country of OriginIL
