Iscar ISCAR 5591906

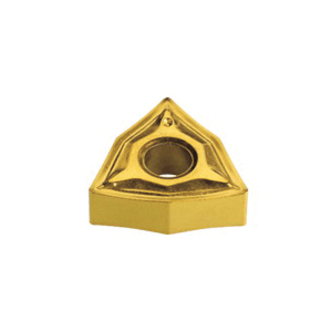

Iscar 5591906 ISOTURN 2-Sided Turning Insert, ANSI Code: WNMG 3-1-NF IC9250, WNMG Insert, Material Grade: M, P, 3-1 Insert, Trigon Shape, 06 Seat, Positive Rake, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: IC9250
Invoice description:
Wnmg 3-1-nf Ic9250
Factory Order

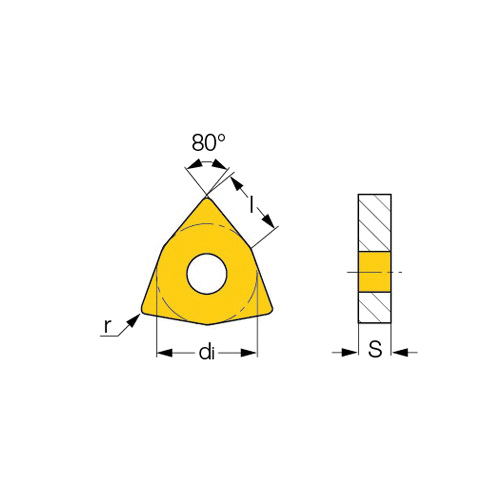

Iscar Turning Insert, 2-Sided, Series: ISOTURN, WNMG Insert, 3-1 Insert, Trigon, 2.5 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.97 mm Thickness, 06 Seat, Positive Rake, NF Chipbreaker, 0.4 mm Corner Radius, Manufacturers Grade: IC9250, ANSI Code: WNMG 3-1-NF IC9250, ISO Code: WNMG 06T304-NF IC9250, 80 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+alpha Al2O3+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- Low cutting forces due to very sharp edge and positive rake
- Chipbreaker on both sides with hole
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeWNMG 3-1-NF IC9250
ChipbreakerNF
Corner Radius0.4 mm
FinishCVD-TiCN+alpha Al2O3+TiN Coated
For Use OnStainless Steel and Steel
Included Angle80 deg
Inscribed Circle9.52 mm
Insert Size3-1
Insert StyleWNMG
ISO CodeWNMG 06T304-NF IC9250
Manufacturers GradeIC9250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut2.5 mm
RakePositive
Relief Angle0 deg
Seat Size06
SeriesISOTURN
ShapeTrigon
Thickness3.97 mm
Type2-Sided
Additional Information
Country of OriginIL
