Iscar ISCAR 5591896

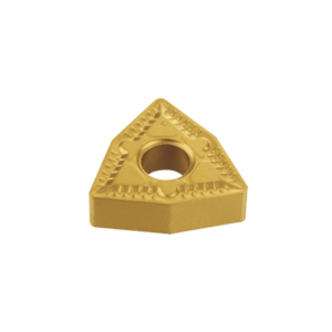

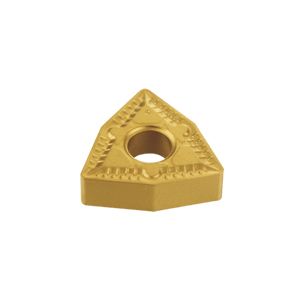

Iscar 5591896 ISOTURN 2-Sided Turning Insert, ANSI Code: WNMG 3-1-GN IC9250, WNMG Insert, Material Grade: M, P, 3-1 Insert, Trigon Shape, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: IC9250
Invoice description:
Wnmg 3-1-gn Ic9250
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, WNMG Insert, 3-1 Insert, Trigon, 0.138 in Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.156 in Thickness, GN Chipbreaker, 0.016 in Corner Radius, Manufacturers Grade: IC9250, ANSI Code: WNMG 3-1-GN IC9250, 80 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+alpha Al2O3+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- Secure cutting edge, for medium and semi-roughing on steel and cast iron
- Chipbreaker on both sides with hole
Specifications
ANSI CodeWNMG 3-1-GN IC9250
ChipbreakerGN
Corner Radius0.016 in
FinishCVD-TiCN+alpha Al2O3+TiN Coated
For Use OnStainless Steel and Steel
Included Angle80 deg
Inscribed Circle3/8 in
Insert Size3-1
Insert StyleWNMG
Manufacturers GradeIC9250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut0.138 in
Relief Angle0 deg
SeriesISOTURN
ShapeTrigon
Thickness0.156 in
Type2-Sided
Additional Information
Country of OriginIL
