Iscar ISCAR 5591886

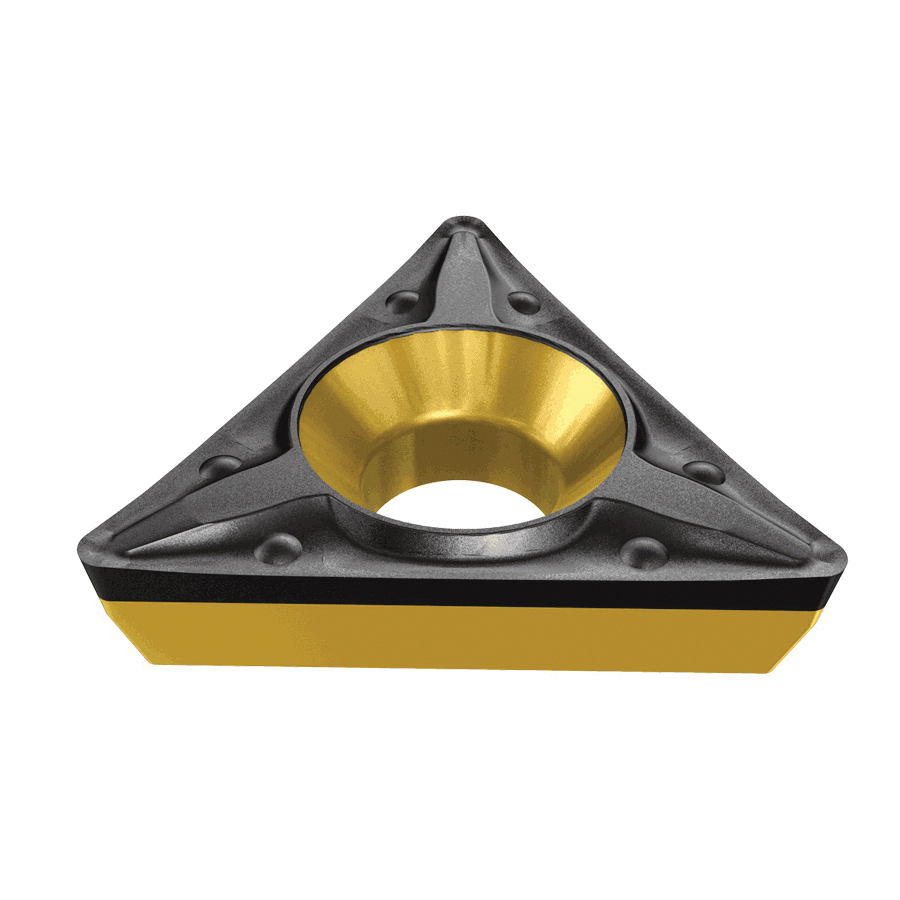

Iscar 5591886 ISOTURN Turning Insert, ANSI Code: TPMT 2-1-PF IC9250, TPMT Insert, Material Grade: M, P, 2-1 Insert, Triangular Shape, 11 Seat, Positive Rake, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: IC9250
Invoice description:
Tpmt 2-1-pf Ic9250
Factory Order

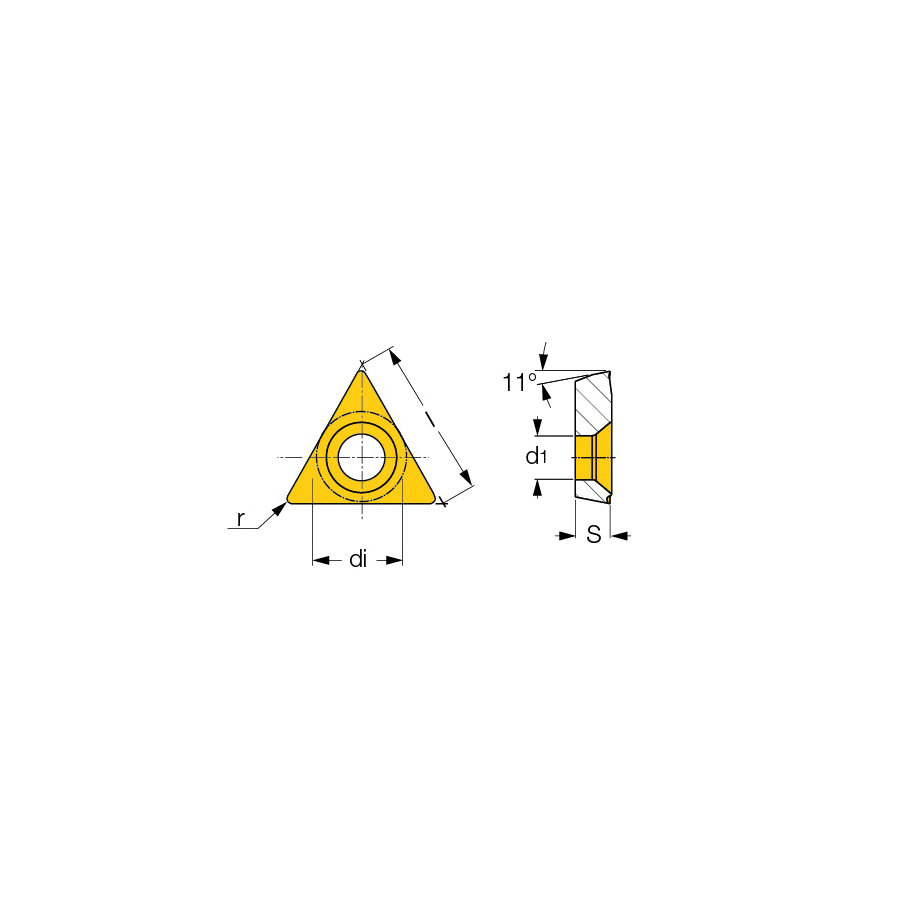

Iscar Turning Insert, Series: ISOTURN, TPMT Insert, 2-1 Insert, Triangular, 3 mm Maximum Depth of Cut, 6.35 mm Inscribed Circle, 2.38 mm Thickness, 11 Seat, Positive Rake, PF Chipbreaker, 0.4 mm Corner Radius, 3 mm Hole Dia, Manufacturers Grade: IC9250, ANSI Code: TPMT 2-1-PF IC9250, ISO Code: TPMT 110204-PF IC9250, 60 deg Included Angle, 11 deg Relief Angle, Carbide, CVD-TiCN+alpha Al2O3+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- Positive triangular inserts
- Used for semi-finish and finishing applications
- IC9250 grade recommended for general use machining of steel in a wide range of conditions, featuring high toughness and wear resistance
- Chipbreaker on one side with hole and countersink
Specifications
ANSI CodeTPMT 2-1-PF IC9250
ChipbreakerPF
Corner Radius0.4 mm
FinishCVD-TiCN+alpha Al2O3+TiN Coated
For Use OnStainless Steel and Steel
Hole Diameter3 mm
Included Angle60 deg
Inscribed Circle6.35 mm
Insert Size2-1
Insert StyleTPMT
ISO CodeTPMT 110204-PF IC9250
Manufacturers GradeIC9250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut3 mm
RakePositive
Relief Angle11 deg
Seat Size11
SeriesISOTURN
ShapeTriangular
Thickness2.38 mm
