Iscar ISCAR 5591786

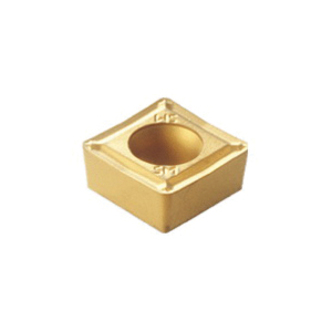

Iscar 5591786 ISOTURN Turning Insert, ANSI Code: SCMT 3-1-SM IC9150, SCMT Insert, Material Grade: K, P, 3-1 Insert, Squared Shape, 09 Seat, Positive Rake, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: IC9150
Invoice description:
Scmt 3-1-sm Ic9150
Factory Order

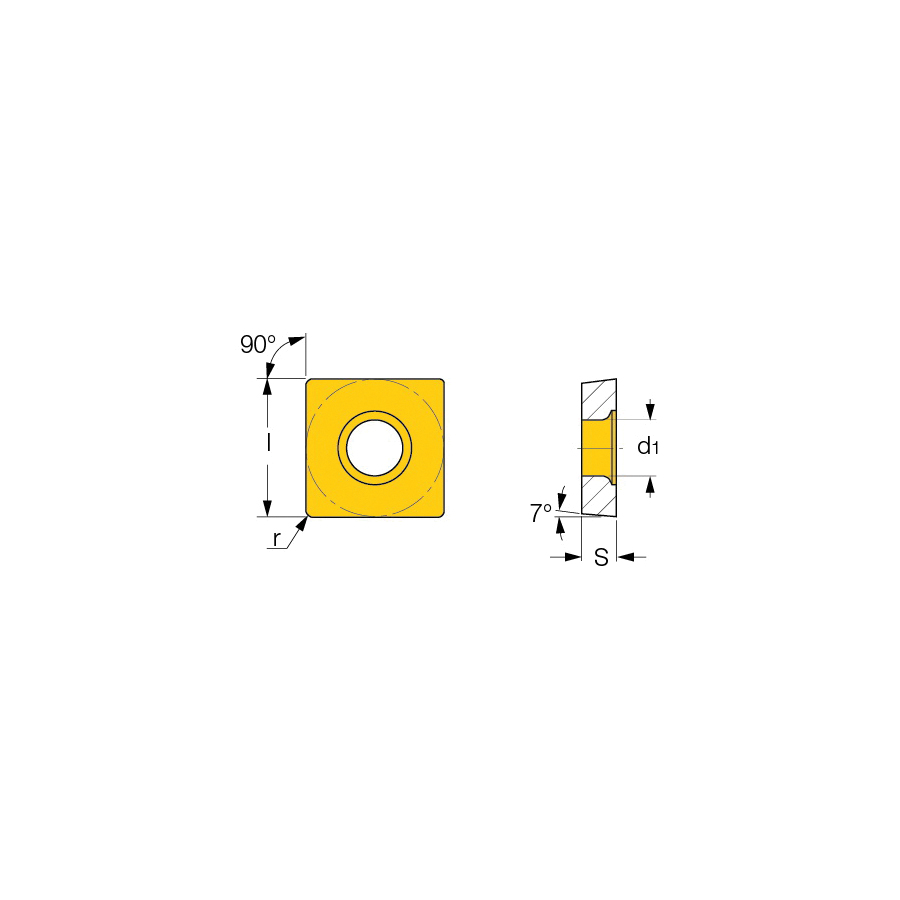

Iscar Turning Insert, Series: ISOTURN, SCMT Insert, 3-1 Insert, Squared, 3 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.97 mm Thickness, 9.52 mm Width, 9.52 mm Length, 09 Seat, Positive Rake, SM Chipbreaker, 0.4 mm Corner Radius, 4.4 mm Hole Dia, Manufacturers Grade: IC9150, ANSI Code: SCMT 3-1-SM IC9150, ISO Code: SCMT 09T304-SM IC9150, 90 deg Included Angle, 7 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
Features
- Positive flank
- Chip breaking in moderate feed range
- Positive rake, low cutting forces
- Chipbreaker on one side with hole and countersink
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeSCMT 3-1-SM IC9150
ChipbreakerSM
Corner Radius0.4 mm
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnCast Iron and Steel
Hole Diameter4.4 mm
Included Angle90 deg
Inscribed Circle9.52 mm
Insert Size3-1
Insert StyleSCMT
ISO CodeSCMT 09T304-SM IC9150
Length9.52 mm
Manufacturers GradeIC9150
MaterialCarbide
Material GradeK, P
Maximum Depth of Cut3 mm
RakePositive
Relief Angle7 deg
Seat Size09
SeriesISOTURN
ShapeSquared
Thickness3.97 mm
Width9.52 mm
Additional Information
Country of OriginIL
