Iscar ISCAR 5590949

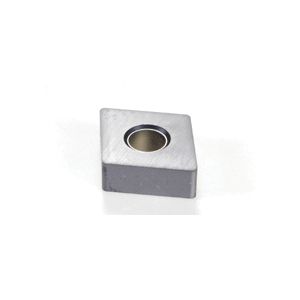

Iscar 5590949 ISOTURN 2-Sided Turning Insert, ANSI Code: CNMA432F IC907, CNMA Insert, Material Grade: H, K, M, N, P, S, 432 Insert, Rhombic Shape, 12 Seat, For Use On Stainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Invoice description:
Cnma 432f Ic907
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, CNMA Insert, 432 Insert, Rhombic, 4 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, 0.8 mm Corner Radius, Manufacturers Grade: IC907, ANSI Code: CNMA432F IC907, ISO Code: CNMA 120408F IC907, 80 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- IC907 grade a tough sub-micron substrate, TiAlN PVD coated
- Suitable for low-to-medium cutting speeds
- Developed for machining of heat resistant alloys, austenitic stainless steel and hard steel
Specifications
ANSI CodeCNMA432F IC907
Corner Radius0.8 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size432
Insert StyleCNMA
ISO CodeCNMA 120408F IC907
Manufacturers GradeIC907
MaterialCarbide
Material GradeH, K, M, N, P, S
Maximum Depth of Cut4 mm
Relief Angle0 deg
Seat Size12
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
