Iscar ISCAR 5590640

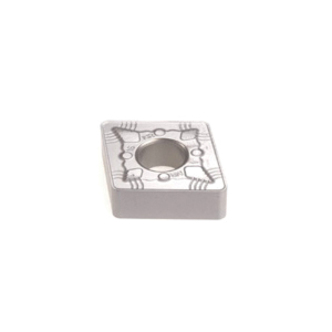

Iscar 5590640 ISOTURN 2-Sided Turning Insert, ANSI Code: CNMG 644-NR IC907, CNMG Insert, Material Grade: H, K, M, N, P, S, 644 Insert, Rhombic Shape, 19 Seat, Carbide, Manufacturers Grade: IC907
Invoice description:
Cnmg 644-nr Ic907
Pack Size: 10
UNSPSC:
23242107
Manufacturer PN: 5590640
$29.59 EA
Factory OrderEstimated to ship in 7 days

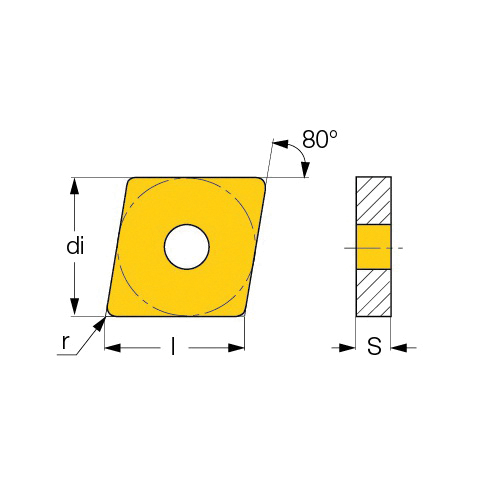

Iscar Turning Insert, 2-Sided, Series: ISOTURN, CNMG Insert, 644 Insert, Rhombic, 10 mm Maximum Depth of Cut, 19.05 mm Inscribed Circle, 6.35 mm Thickness, 19 Seat, NR Chipbreaker, 1.6 mm Corner Radius, Manufacturers Grade: IC907, ANSI Code: CNMG 644-NR IC907, ISO Code: CNMG 190616-NR IC907, 80 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- Special chipformer for heavy machining
- IC907 grade a tough sub-micron substrate, TiAlN PVD coated
- Suitable for low-to-medium cutting speeds
- Developed for machining of heat resistant alloys, austenitic stainless steel and hard steel
Specifications
ANSI CodeCNMG 644-NR IC907
ChipbreakerNR
Corner Radius1.6 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Included Angle80 deg
Inscribed Circle19.05 mm
Insert Size644
Insert StyleCNMG
ISO CodeCNMG 190616-NR IC907
Manufacturers GradeIC907
MaterialCarbide
Material GradeH, K, M, N, P, S
Maximum Depth of Cut10 mm
Relief Angle0 deg
Seat Size19
SeriesISOTURN
ShapeRhombic
Thickness6.35 mm
Type2-Sided
Additional Information
Country of OriginIL
