Iscar ISCAR 5590509

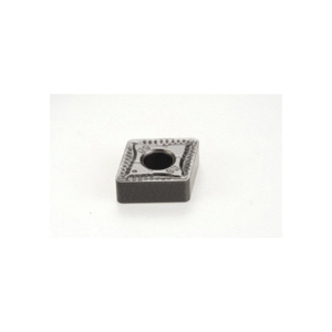

Iscar 5590509 ISOTURN 2-Sided Turning Insert, ANSI Code: CNMG 433-GN IC907, CNMG Insert, Material Grade: H, K, M, N, P, S, 433 Insert, Rhombic Shape, 12 Seat, Carbide, Manufacturers Grade: IC907
Invoice description:
Cnmg 433-gn Ic907
Factory Order

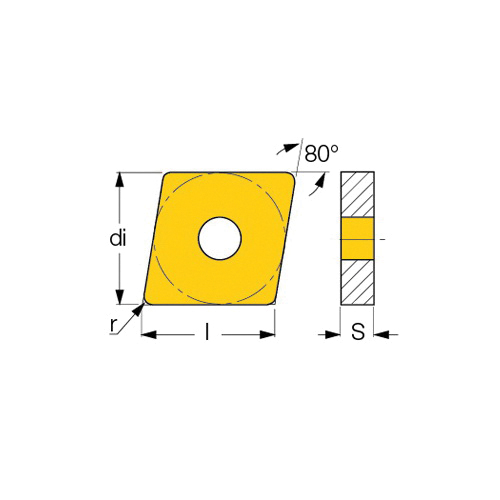

Iscar Turning Insert, 2-Sided, Series: ISOTURN, CNMG Insert, 433 Insert, Rhombic, 5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, GN Chipbreaker, 1.2 mm Corner Radius, 0.203 in Hole Dia, Manufacturers Grade: IC907, ANSI Code: CNMG 433-GN IC907, ISO Code: CNMG 120412-GN IC907, 80 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- Secure cutting edge
- Chipbreaker on both sides with hole
Specifications
ApplicationMedium and Semi-Roughing
ANSI CodeCNMG 433-GN IC907
ChipbreakerGN
Corner Radius1.2 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Hole Diameter0.203 in
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size433
Insert StyleCNMG
ISO CodeCNMG 120412-GN IC907
Manufacturers GradeIC907
MaterialCarbide
Material GradeH, K, M, N, P, S
Maximum Depth of Cut5 mm
Relief Angle0 deg
Seat Size12
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
