Iscar ISCAR 5590080

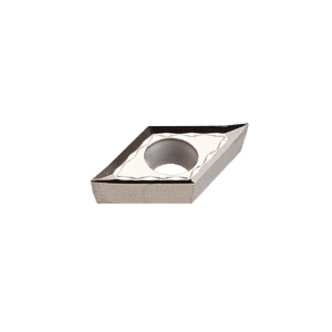

Iscar 5590080 ISOTURN 1-Sided Turning Insert, ANSI Code: DCGT 3-.004-AS IC520, DCGT Insert, Material Grade: M, N, S, 3-.004 Insert, Rhombic Shape, 11 Seat, Positive Rake, For Use On Stainless Steel, High Temperature Alloys and Aluminum, Carbide

UNSPSC: 23242107
Manufacturer PN: 5590080
$21.40 EA
Factory Order
Estimated to ship in 14 days
QTY:

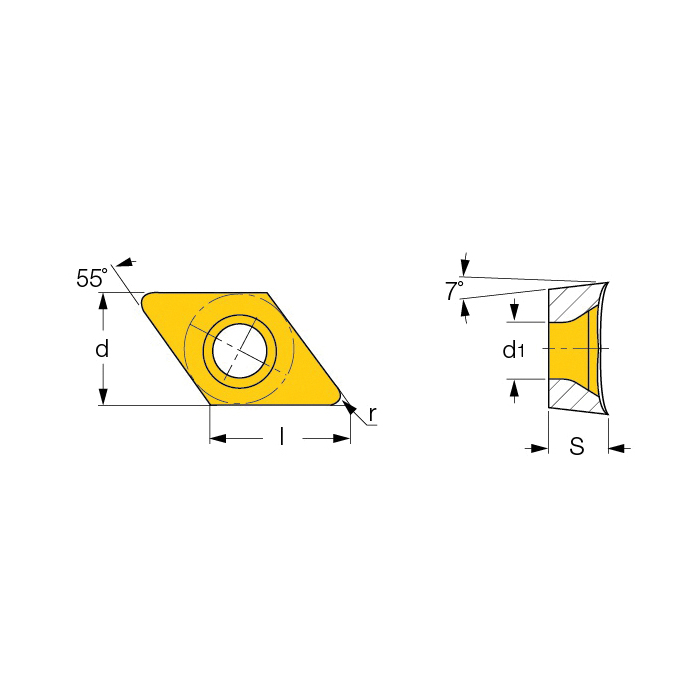

Iscar Turning Insert, 1-Sided, Series: ISOTURN, DCGT Insert, 3-.004 Insert, Rhombic, 2.5 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.97 mm Thickness, 11 Seat, Positive Rake, AS Chipbreaker, 0.1 mm Corner Radius, 4.4 mm Hole Dia, Manufacturers Grade: IC520, ANSI Code: DCGT 3-.004-AS IC520, ISO Code: DCGT 11T301-AS IC520, 55 deg Included Angle, 7 deg Relief Angle, Carbide, PVD-TiCN+TiN Coated, Material Grade: M, N, S, For Use On: Stainless Steel, High Temperature Alloys and Aluminum

  • Features

  • Positive flank
  • Very positive rake angle and sharp cutting edge for machining aluminum
  • Chipbreaker on one side with hole and countersink

Specifications

ApplicationMachining Applications
ANSI CodeDCGT 3-.004-AS IC520
ChipbreakerAS
Corner Radius0.1 mm
FinishPVD-TiCN+TiN Coated
For Use OnStainless Steel, High Temperature Alloys and Aluminum
Hole Diameter4.4 mm
Included Angle55 deg
Inscribed Circle9.52 mm
Insert Size3-.004
Insert StyleDCGT
ISO CodeDCGT 11T301-AS IC520
Manufacturers GradeIC520
MaterialCarbide
Material GradeM, N, S
Maximum Depth of Cut2.5 mm
RakePositive
Relief Angle7 deg
Seat Size11
SeriesISOTURN
ShapeRhombic
Thickness3.97 mm
Type1-Sided
