Iscar ISCAR 5569183

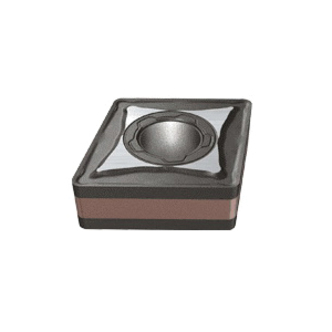

Iscar 5569183 ISOTURN Turning Insert, ANSI Code: CNMG 120408-M3M, CNMG Insert, 120408 Insert, Rhombic Shape, Positive Rake, For Use On Stainless Steel and Low Carbon Steel, Manufacturers Grade: IC804
Invoice description:
Cnmg 432-m3m Ic804 Turning Insert
In stock
(20)
Iscar Turning Insert, Series: ISOTURN, CNMG Insert, 120408 Insert, Rhombic, 12.7 mm Inscribed Circle, 4.76 mm Thickness, Positive Rake, 0.8 mm Corner Radius, Manufacturers Grade: IC804, ANSI Code: CNMG 120408-M3M, ISO Code: CNMG-M3M, 80 deg Included Angle, For Use On: Stainless Steel and Low Carbon Steel
Features
- Double sided 80 deg rhombic inserts, first choice for machining stainless and low carbon steel
- Positive rake angle, low cutting forces, providing very reliable performance and excellent tool life
Specifications
ApplicationISO Turning and External 100 deg Diamond 75 deg approach
ANSI CodeCNMG 120408-M3M
Corner Radius0.8 mm
For Use OnStainless Steel and Low Carbon Steel
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size120408
Insert StyleCNMG
ISO CodeCNMG-M3M
Manufacturers GradeIC804
RakePositive
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Additional Information
Standards/ApprovalISO 13399
