Iscar ISCAR 5568857

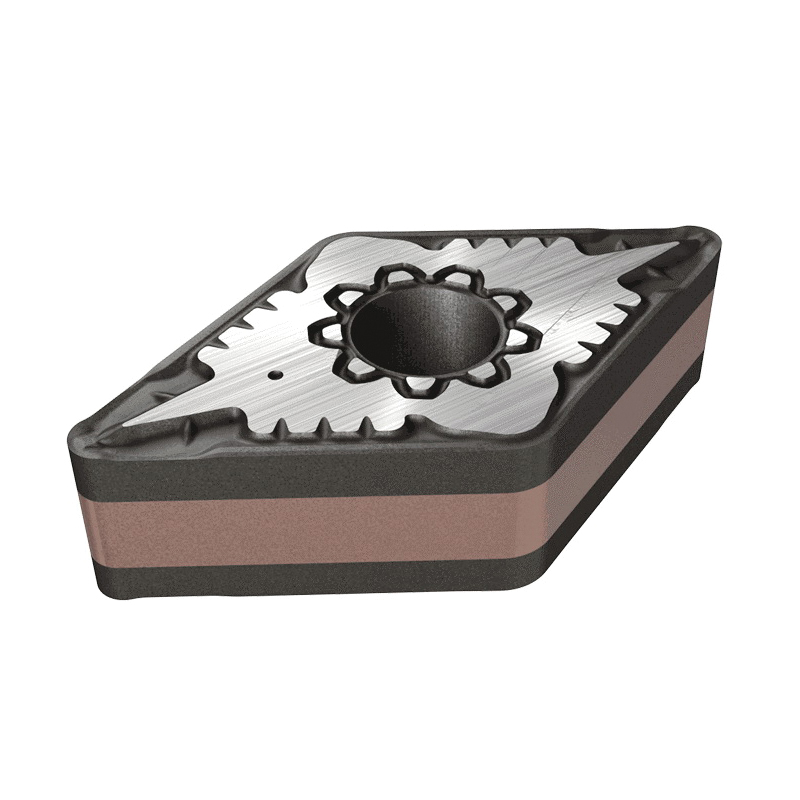

Iscar 5568857 ISOTURN Turning Insert, ANSI Code: DNMG 431-F3M, DNMG Insert, 431 Insert, Rhombic Shape, Positive Rake, For Use On Stainless Steel and Low Carbon Steel, Manufacturers Grade: IC806
Invoice description:
Dnmg 431-f3m Ic806 Turning Insert
Pack Size: 10
UNSPSC:
23242105
Manufacturer PN: 5568857
$17.81 EA
Factory OrderEstimated to ship in 7 days
Iscar Turning Insert, Series: ISOTURN, DNMG Insert, 431 Insert, Rhombic, 1/2 in Inscribed Circle, 0.187 in Thickness, Positive Rake, 0.016 in Corner Radius, Manufacturers Grade: IC806, ANSI Code: DNMG 431-F3M, ISO Code: DNMG-F3M, 55 deg Included Angle, For Use On: Stainless Steel and Low Carbon Steel
Features
- Double sided 55 deg rhombic inserts, first choice for finish turning of stainless and low carbon steel
- Positive rake angle, low cutting forces, providing very reliable performance and excellent tool life
Specifications
ApplicationISO Turning
ANSI CodeDNMG 431-F3M
Corner Radius0.016 in
For Use OnStainless Steel and Low Carbon Steel
Included Angle55 deg
Inscribed Circle1/2 in
Insert Size431
Insert StyleDNMG
ISO CodeDNMG-F3M
Manufacturers GradeIC806
RakePositive
SeriesISOTURN
ShapeRhombic
Thickness0.187 in
Additional Information
Standards/ApprovalISO 13399
