Iscar ISCAR 5568615

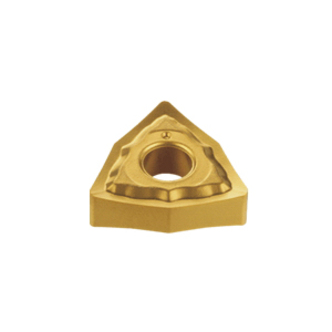

Iscar 5568615 ISOTURN 2-Sided Turning Insert, ANSI Code: WNMG 431-PP IC830, WNMG Insert, Material Grade: M, P, S, 431 Insert, Trigon Shape, Positive Rake, For Use On Stainless Steel, Steel and High Temperature Alloys, Carbide, Manufacturers Grade: IC830
Invoice description:
Wnmg 431-pp Ic830
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, WNMG Insert, 431 Insert, Trigon, 0.138 in Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.187 in Thickness, Positive Rake, PP Chipbreaker, 0.016 in Corner Radius, Manufacturers Grade: IC830, ANSI Code: WNMG 431-PP IC830, 80 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: M, P, S, For Use On: Stainless Steel, Steel and High Temperature Alloys
Features
- Double-sided trigon inserts with a positive rake angle and sharp, positive radial edge
- Used for machining very ductile materials such as aluminum alloys, soft, low carbon steel, stainless steel and high temperature alloys
- IC830 grade recommended for interrupted cut and heavy operations on stainless steel, high temperature and alloyed steel
- High toughness and wear resistance
- Chipbreaker on both sides, with hole
Specifications
ANSI CodeWNMG 431-PP IC830
ChipbreakerPP
Corner Radius0.016 in
FinishPVD-TiAlN/AlTiN+TiN Coated
For Use OnStainless Steel, Steel and High Temperature Alloys
Included Angle80 deg
Inscribed Circle1/2 in
Insert Size431
Insert StyleWNMG
Manufacturers GradeIC830
MaterialCarbide
Material GradeM, P, S
Maximum Depth of Cut0.138 in
RakePositive
Relief Angle0 deg
SeriesISOTURN
ShapeTrigon
Thickness0.187 in
Type2-Sided
