Iscar ISCAR 5568605

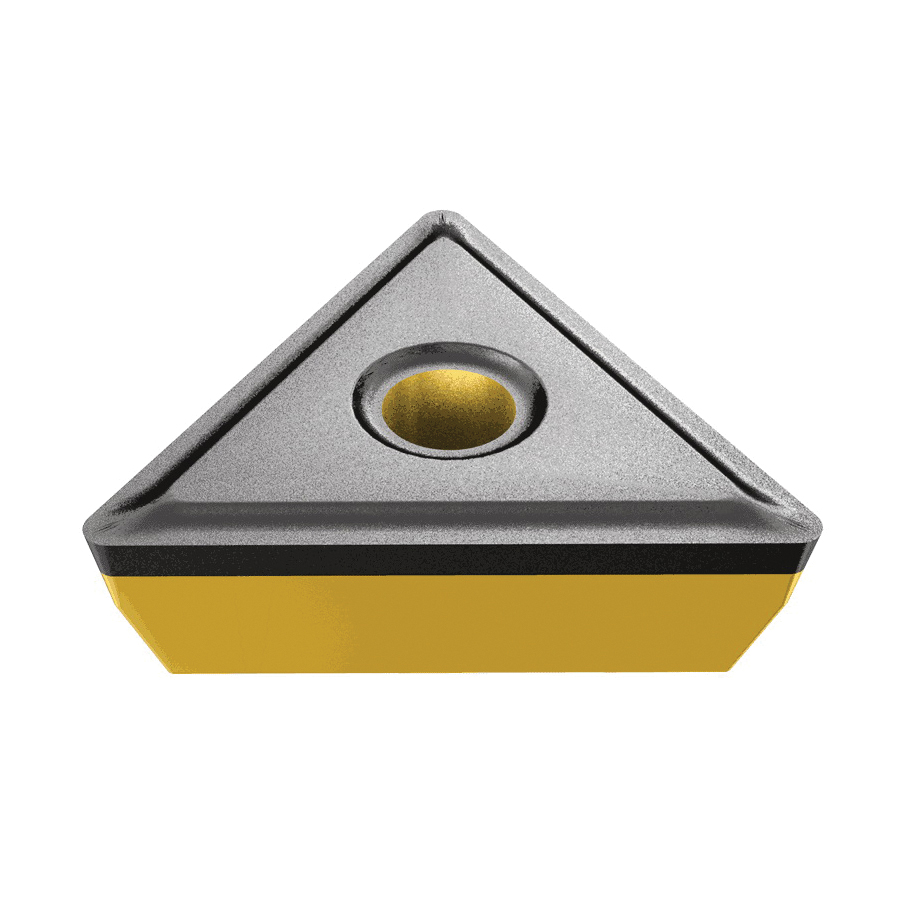

Iscar 5568605 1-Sided Turning Insert, ANSI Code: TPMR 322 IC830, TPMR Insert, Material Grade: M, P, S, 322 Insert, Triangular Shape, 16 Seat, Positive Rake, For Use On Stainless Steel, Steel and High Temperature Alloys, Carbide, Manufacturers Grade: IC830
Invoice description:
Tpmr 322 Ic830
Factory Order

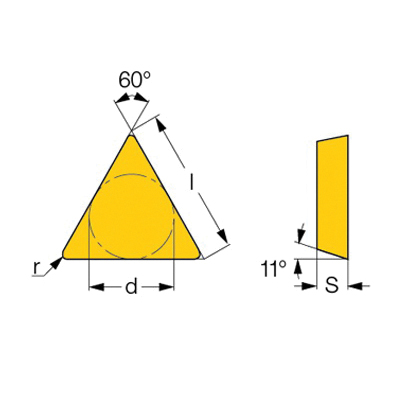

Iscar Turning Insert, 1-Sided, TPMR Insert, 322 Insert, Triangular, 4 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.18 mm Thickness, 16 Seat, Positive Rake, 0.8 mm Corner Radius, Manufacturers Grade: IC830, ANSI Code: TPMR 322 IC830, ISO Code: TPMR 160308 IC830, 60 deg Included Angle, 11 deg Relief Angle, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: M, P, S, For Use On: Stainless Steel, Steel and High Temperature Alloys
Features
- Positive chipformer
- Low cutting forces
- Chipbreaker on one side without hole
Specifications
ApplicationInternal Turning and Finishing
ANSI CodeTPMR 322 IC830
Corner Radius0.8 mm
FinishPVD-TiAlN/AlTiN+TiN Coated
For Use OnStainless Steel, Steel and High Temperature Alloys
Included Angle60 deg
Inscribed Circle9.52 mm
Insert Size322
Insert StyleTPMR
ISO CodeTPMR 160308 IC830
Manufacturers GradeIC830
MaterialCarbide
Material GradeM, P, S
Maximum Depth of Cut4 mm
RakePositive
Relief Angle11 deg
Seat Size16
ShapeTriangular
Thickness3.18 mm
Type1-Sided
