Iscar ISCAR 5568590

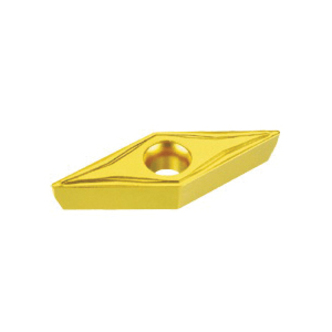

Iscar 5568590 ISOTURN Turning Insert, ANSI Code: VCMT 331-14 IC830, VCMT Insert, Material Grade: M, P, S, 331 Insert, Rhombic Shape, Positive Rake, For Use On Stainless Steel, Steel and High Temperature Alloys, Carbide, Manufacturers Grade: IC830

UNSPSC: 23242107
Manufacturer PN: 5568590
$19.72 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Turning Insert, Series: ISOTURN, VCMT Insert, 331 Insert, Rhombic, 0.197 in Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.187 in Thickness, Positive Rake, 0.016 in Corner Radius, 0.173 in Hole Dia, Manufacturers Grade: IC830, ANSI Code: VCMT 331-14 IC830, 35 deg Included Angle, 7 deg Relief Angle, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: M, P, S, For Use On: Stainless Steel, Steel and High Temperature Alloys

  • Features

  • Positive flank
  • Chip breaking in moderate feed range
  • Positive rake, low cutting forces
  • Chipbreaker on one side with hole and countersink

Specifications

ApplicationSemi-Finishing and Finishing
ANSI CodeVCMT 331-14 IC830
Corner Radius0.016 in
FinishPVD-TiAlN/AlTiN+TiN Coated
For Use OnStainless Steel, Steel and High Temperature Alloys
Hole Diameter0.173 in
Included Angle35 deg
Inscribed Circle3/8 in
Insert Size331
Insert StyleVCMT
Manufacturers GradeIC830
MaterialCarbide
Material GradeM, P, S
Maximum Depth of Cut0.197 in
RakePositive
Relief Angle7 deg
SeriesISOTURN
ShapeRhombic
Thickness0.187 in
