Iscar ISCAR 5568589

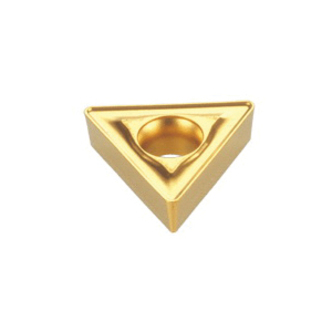

Iscar 5568589 ISOTURN Turning Insert, ANSI Code: TCMT 3219 IC830, TCMT Insert, Material Grade: M, P, S, 3219 Insert, Triangular Shape, 16 Seat, Positive Rake, For Use On Stainless Steel, Steel and High Temperature Alloys, Carbide
Invoice description:
Tcmt 3-2-19 Ic830
Factory Order
Iscar Turning Insert, Series: ISOTURN, TCMT Insert, 3219 Insert, Triangular, 4 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.97 mm Thickness, 16 Seat, Positive Rake, 0.8 mm Corner Radius, 4.4 mm Hole Dia, Manufacturers Grade: IC830, ANSI Code: TCMT 3219 IC830, ISO Code: TCMT 16T308-19 IC830, 60 deg Included Angle, 7 deg Relief Angle, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: M, P, S, For Use On: Stainless Steel, Steel and High Temperature Alloys
Features
- Positive flat rake and a strong cutting edge for semi-roughing applications at medium to high feeds
- High toughness and wear resistance
- Chipbreaker on one side with hole and countersink
Specifications
ANSI CodeTCMT 3219 IC830
Corner Radius0.8 mm
FinishPVD-TiAlN/AlTiN+TiN Coated
For Use OnStainless Steel, Steel and High Temperature Alloys
Hole Diameter4.4 mm
Included Angle60 deg
Inscribed Circle9.52 mm
Insert Size3219
Insert StyleTCMT
ISO CodeTCMT 16T308-19 IC830
Manufacturers GradeIC830
MaterialCarbide
Material GradeM, P, S
Maximum Depth of Cut4 mm
RakePositive
Relief Angle7 deg
Seat Size16
SeriesISOTURN
ShapeTriangular
Thickness3.97 mm
