Iscar ISCAR 5568586

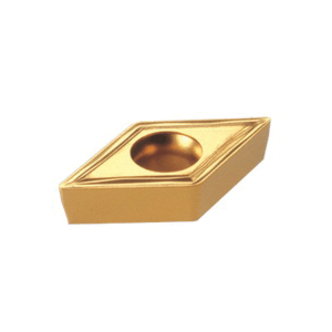

Iscar 5568586 ISOTURN Turning Insert, ANSI Code: DCMT 3-1-14 IC830, DCMT Insert, Material Grade: M, P, S, 3-1 Insert, Rhombic Shape, 11 Seat, Positive Rake, For Use On Stainless Steel, Steel and High Temperature Alloys, Carbide, Manufacturers Grade: IC830
Invoice description:
Dcmt 3-1-14 Ic830
Factory Order
Iscar Turning Insert, Series: ISOTURN, DCMT Insert, 3-1 Insert, Rhombic, 2.5 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.97 mm Thickness, 11 Seat, Positive Rake, 0.4 mm Corner Radius, 4.4 mm Hole Dia, Manufacturers Grade: IC830, ANSI Code: DCMT 3-1-14 IC830, ISO Code: DCMT 11T304-14 IC830, 55 deg Included Angle, 7 deg Relief Angle, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: M, P, S, For Use On: Stainless Steel, Steel and High Temperature Alloys
Features
- Chip breaking in moderate feed range
- Positive rake, low cutting forces
- Used for a wide range of materials including soft and exotic alloys
- IC830 grade recommended for interrupted cut and heavy operations on stainless steel, high temperature and alloyed steel
- High toughness and wear resistance
- Chipbreaker on one side, with hole and countersink
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeDCMT 3-1-14 IC830
Corner Radius0.4 mm
FinishPVD-TiAlN/AlTiN+TiN Coated
For Use OnStainless Steel, Steel and High Temperature Alloys
Hole Diameter4.4 mm
Included Angle55 deg
Inscribed Circle9.52 mm
Insert Size3-1
Insert StyleDCMT
ISO CodeDCMT 11T304-14 IC830
Manufacturers GradeIC830
MaterialCarbide
Material GradeM, P, S
Maximum Depth of Cut2.5 mm
RakePositive
Relief Angle7 deg
Seat Size11
SeriesISOTURN
ShapeRhombic
Thickness3.97 mm
