Iscar ISCAR 5568585

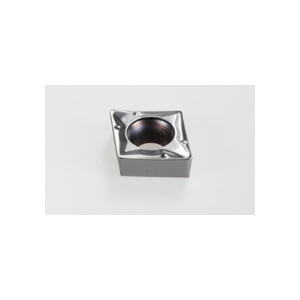

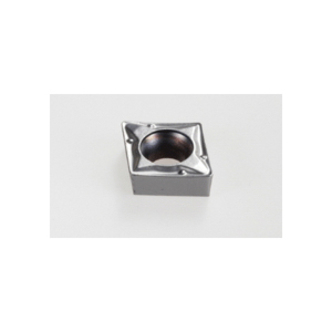

Iscar 5568585 ISOTURN 1-Sided Turning Insert, ANSI Code: CCMT 2-1-PF IC830, CCMT Insert, Material Grade: M, P, S, 2-1 Insert, Rhombic Shape, 06 Seat, Positive Rake, For Use On Stainless Steel, Steel and High Temperature Alloys, Carbide
Invoice description:
Ccmt 2-1-pf Ic830
Factory Order

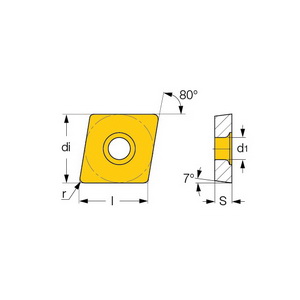

Iscar Turning Insert, 1-Sided, Series: ISOTURN, CCMT Insert, 2-1 Insert, Rhombic, 2.5 mm Maximum Depth of Cut, 6.35 mm Inscribed Circle, 2.38 mm Thickness, 06 Seat, Positive Rake, PF Chipbreaker, 0.4 mm Corner Radius, 2.8 mm Hole Dia, Manufacturers Grade: IC830, ANSI Code: CCMT 2-1-PF IC830, ISO Code: CCMT 060204-PF IC830, 80 deg Included Angle, 7 deg Relief Angle, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: M, P, S, For Use On: Stainless Steel, Steel and High Temperature Alloys
Features
- Positive rake, low cutting forces
- Chipbreaker on one side, with hole and counter sink
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeCCMT 2-1-PF IC830
ChipbreakerPF
Corner Radius0.4 mm
FinishPVD-TiAlN/AlTiN+TiN Coated
For Use OnStainless Steel, Steel and High Temperature Alloys
Hole Diameter2.8 mm
Included Angle80 deg
Inscribed Circle6.35 mm
Insert Size2-1
Insert StyleCCMT
ISO CodeCCMT 060204-PF IC830
Manufacturers GradeIC830
MaterialCarbide
Material GradeM, P, S
Maximum Depth of Cut2.5 mm
RakePositive
Relief Angle7 deg
Seat Size06
SeriesISOTURN
ShapeRhombic
Thickness2.38 mm
Type1-Sided
Additional Information
Country of OriginIL
