Iscar ISCAR 5568582

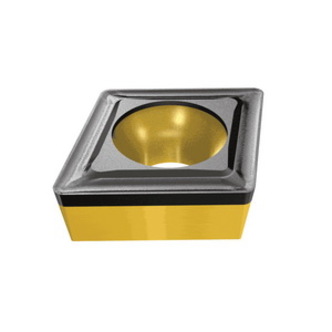

Iscar 5568582 ISOTURN 1-Sided Turning Insert, ANSI Code: CCMT 432-14 IC830, CCMT Insert, Material Grade: M, P, S, 432 Insert, Rhombic Shape, 12 Seat, Positive Rake, For Use On Stainless Steel, Steel and High Temperature Alloys, Carbide
Factory Order
Iscar Turning Insert, 1-Sided, Series: ISOTURN, CCMT Insert, 432 Insert, Rhombic, 3 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, Positive Rake, 0.8 mm Corner Radius, 5.5 mm Hole Dia, Manufacturers Grade: IC830, ANSI Code: CCMT 432-14 IC830, ISO Code: CCMT 120408-14 IC830, 80 deg Included Angle, 7 deg Relief Angle, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: M, P, S, For Use On: Stainless Steel, Steel and High Temperature Alloys
Features
- Chip breaking in moderate feed range
- Positive rake, low cutting forces
- Chipbreaker on one side with hole and countersink
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeCCMT 432-14 IC830
Corner Radius0.8 mm
FinishPVD-TiAlN/AlTiN+TiN Coated
For Use OnStainless Steel, Steel and High Temperature Alloys
Hole Diameter5.5 mm
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size432
Insert StyleCCMT
ISO CodeCCMT 120408-14 IC830
Manufacturers GradeIC830
MaterialCarbide
Material GradeM, P, S
Maximum Depth of Cut3 mm
RakePositive
Relief Angle7 deg
Seat Size12
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type1-Sided
