Iscar ISCAR 5567878

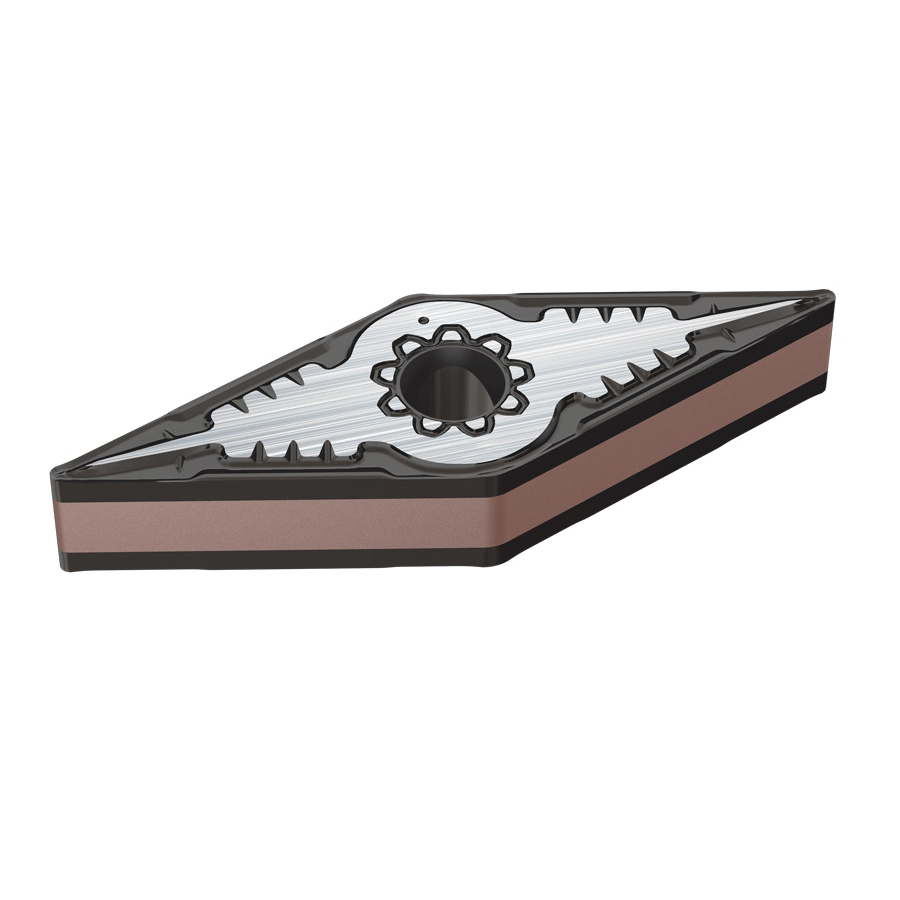

Iscar 5567878 ISOTURN 2-Sided Turning Insert, ANSI Code: VNMG 331-F3M IC6025, VNMG Insert, Material Grade: M, 331 Insert, Rhombic Shape, 16 Seat, Positive Rake, For Use On Stainless Steel, Carbide, Manufacturers Grade: IC6025
Invoice description:
Vnmg 331-f3m Ic6025
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, VNMG Insert, 331 Insert, Rhombic, 1.5 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 16 Seat, Positive Rake, F3M Chipbreaker, 0.4 mm Corner Radius, Manufacturers Grade: IC6025, ANSI Code: VNMG 331-F3M IC6025, ISO Code: VNMG 160404-F3M IC6025, 35 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, For Use On: Stainless Steel
Features
- Low cutting forces due to very sharp edge and positive rake
- IC6025 grade recommended for machining stainless steel at high feeds and unfavorable conditions at medium cutting speed
- Chipbreaker on both sides with hole
Specifications
ANSI CodeVNMG 331-F3M IC6025
ChipbreakerF3M
Corner Radius0.4 mm
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnStainless Steel
Included Angle35 deg
Inscribed Circle9.52 mm
Insert Size331
Insert StyleVNMG
ISO CodeVNMG 160404-F3M IC6025
Manufacturers GradeIC6025
MaterialCarbide
Material GradeM
Maximum Depth of Cut1.5 mm
RakePositive
Relief Angle0 deg
Seat Size16
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type2-Sided
