Iscar ISCAR 5567866

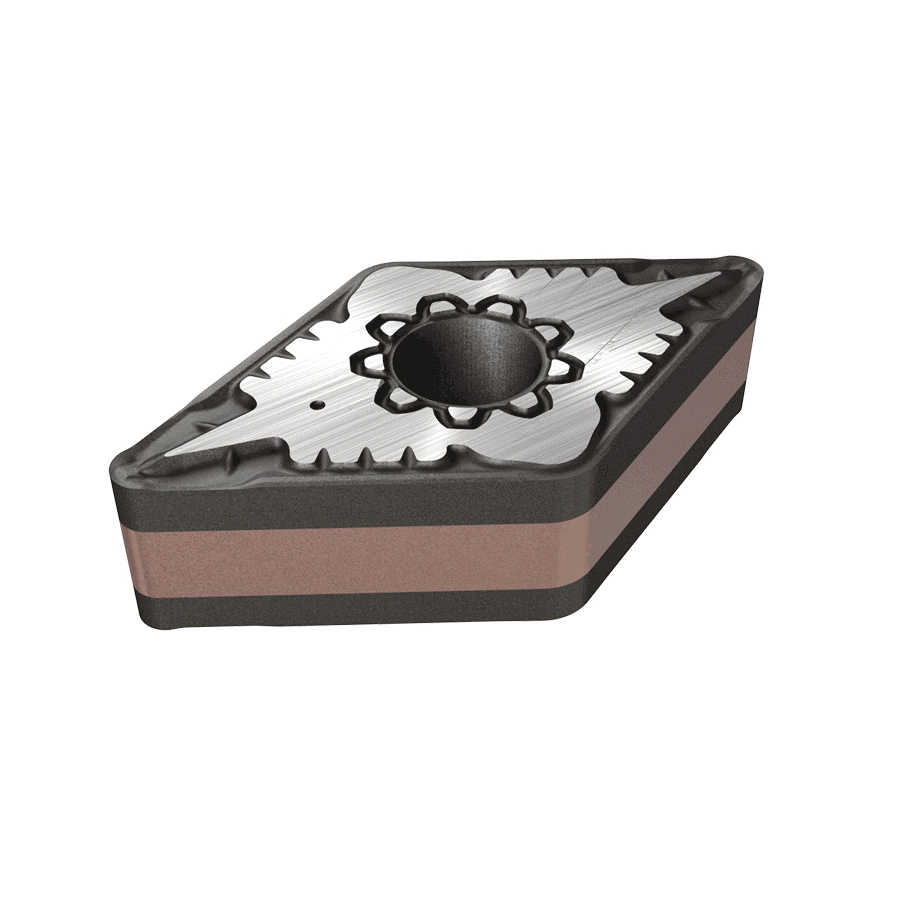

Iscar 5567866 ISOTURN 2-Sided Turning Insert, ANSI Code: DNMG 431-F3M IC6025, DNMG Insert, Material Grade: M, 431 Insert, Rhombic Shape, 15 Seat, Positive Rake, For Use On Stainless Steel, Carbide, Manufacturers Grade: IC6025
Invoice description:
Dnmg 431-f3m Ic6025
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, DNMG Insert, 431 Insert, Rhombic, 1.5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 15 Seat, Positive Rake, F3M Chipbreaker, 0.4 mm Corner Radius, Manufacturers Grade: IC6025, ANSI Code: DNMG 431-F3M IC6025, ISO Code: DNMG 150404-F3M IC6025, 55 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, For Use On: Stainless Steel
Features
- First choice for finish turning of stainless and low carbon steel
- Positive rake angle, low cutting forces, providing very reliable performance and excellent tool life
- IC6025 grade recommended for machining stainless steel at high feeds and unfavorable conditions at medium cutting speed
- Chipbreaker on both sides with hole
Specifications
ANSI CodeDNMG 431-F3M IC6025
ChipbreakerF3M
Corner Radius0.4 mm
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnStainless Steel
Included Angle55 deg
Inscribed Circle12.7 mm
Insert Size431
Insert StyleDNMG
ISO CodeDNMG 150404-F3M IC6025
Manufacturers GradeIC6025
MaterialCarbide
Material GradeM
Maximum Depth of Cut1.5 mm
RakePositive
Relief Angle0 deg
Seat Size15
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
