Iscar ISCAR 5567824

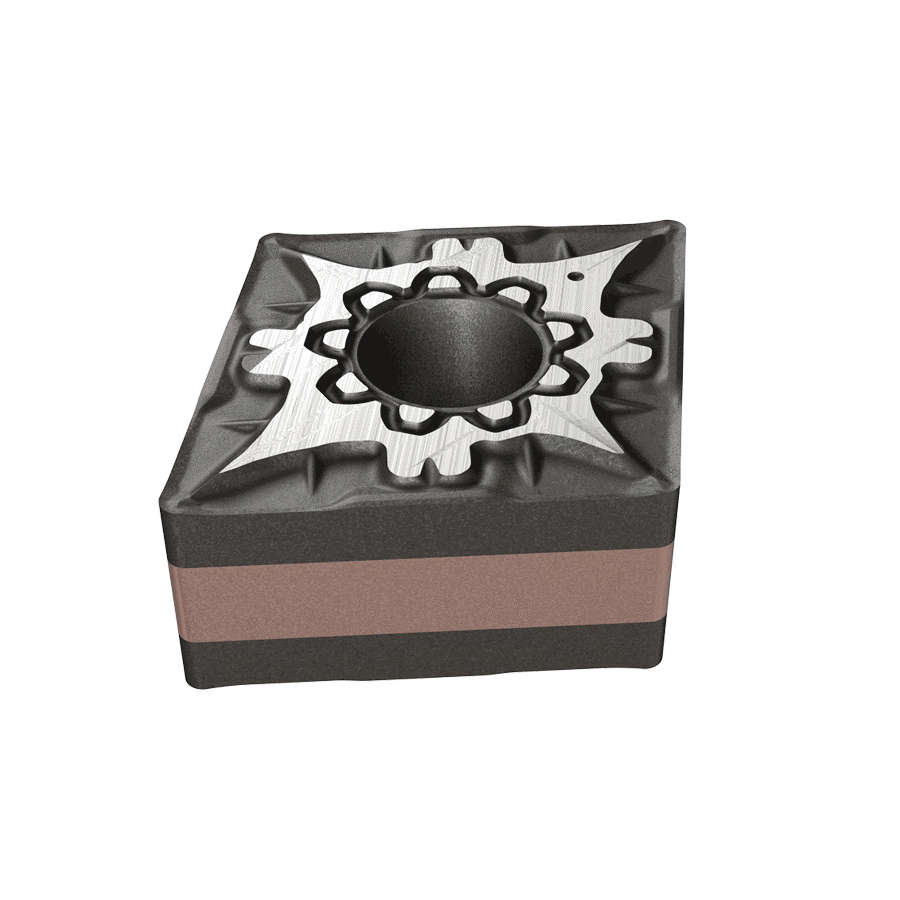

Iscar 5567824 ISOTURN 2-Sided Turning Insert, ANSI Code: CNMG 432-F3M IC6025, CNMG Insert, Material Grade: M, 432 Insert, Rhombic Shape, 12 Seat, Positive Rake, For Use On Stainless Steel, Carbide, Manufacturers Grade: IC6025

UNSPSC: 23242107
Manufacturer PN: 5567824
$13.90 EA
Factory Order
Estimated to ship in 14 days
QTY:

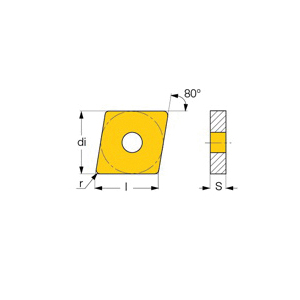

Iscar Turning Insert, 2-Sided, Series: ISOTURN, CNMG Insert, 432 Insert, Rhombic, 1.5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, Positive Rake, F3M Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC6025, ANSI Code: CNMG 432-F3M IC6025, ISO Code: CNMG 120408-F3M IC6025, 80 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, For Use On: Stainless Steel

  • Features

  • Chipbreaker on both sides with hole

Specifications

ApplicationFinishing Applications
ANSI CodeCNMG 432-F3M IC6025
ChipbreakerF3M
Corner Radius0.8 mm
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnStainless Steel
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size432
Insert StyleCNMG
ISO CodeCNMG 120408-F3M IC6025
Manufacturers GradeIC6025
MaterialCarbide
Material GradeM
Maximum Depth of Cut1.5 mm
RakePositive
Relief Angle0 deg
Seat Size12
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type2-Sided
